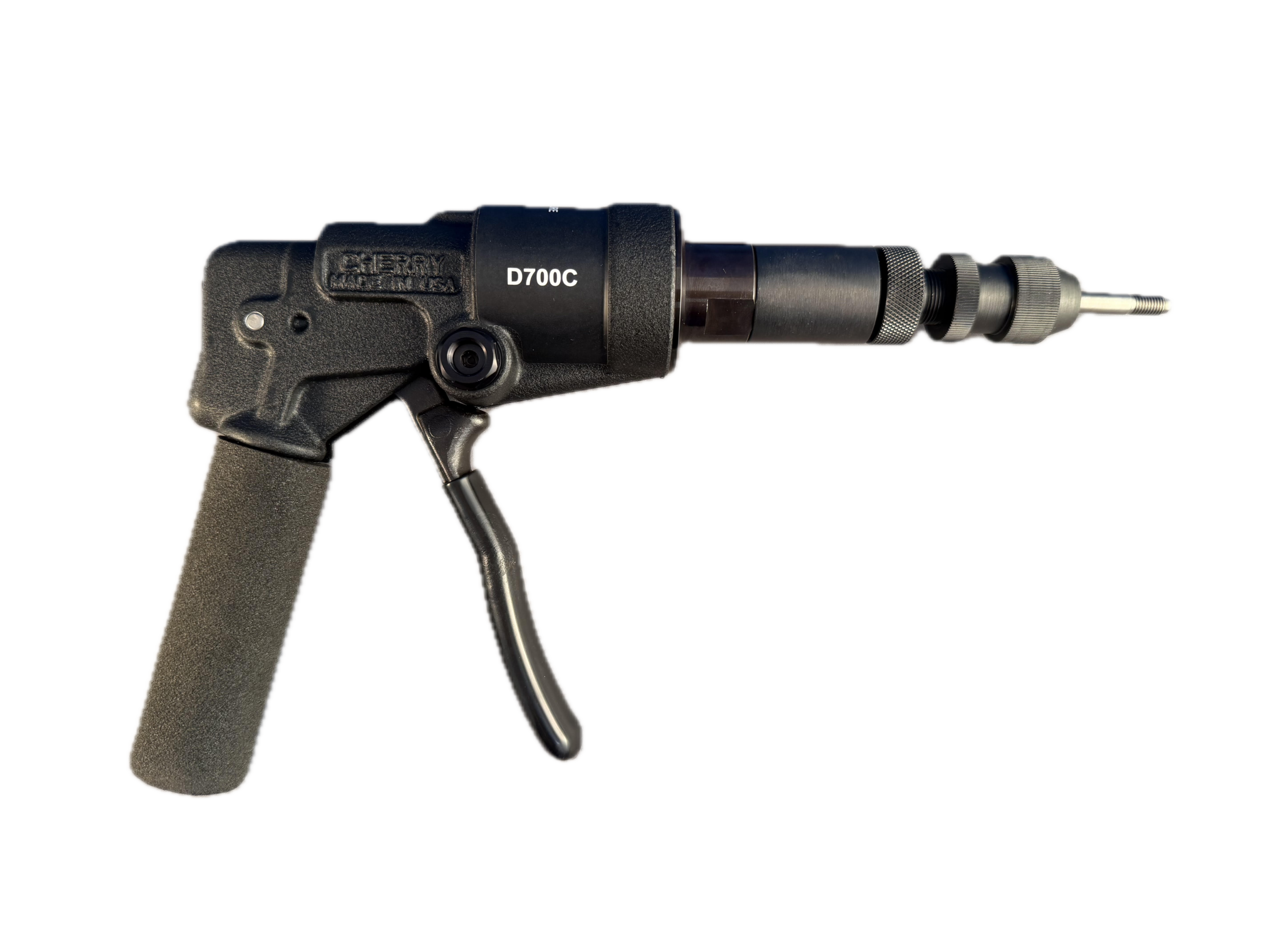

D-700-364HL Rivetless Nut Plate Installation Tool (8-32)

Description

The D-700-364HL is the 8-32 configuration of FSI’s rivetless nutplate installation tool. Where a multi-size kit makes sense for a mixed workload, a dedicated single-size tool is the better choice for sustained production on one thread size: nothing to swap, nothing to set up wrong between installations, and a shorter cycle per fastener.

The tool installs a three-piece rivetless floating nutplate in a single action, producing enough pull force to fully seat the anti-rotational lobes on the sleeve into the work piece while simultaneously flaring the stainless steel sleeve to captivate the fastener. The resulting installation meets or exceeds the push-out, torque-out and tensile requirements of MIL-N-25027. A built-in pressure control valve regulates pull force, and the tool is adjustable for fastener sleeve length and material thickness. Field serviceable, and at 33 oz it minimises wrist effort across a long shift.

Specifications

• Pulling Force: 5,000 lbs
• Stroke: 0.8" (20.3 mm)
• Overall Dimensions: 7.5" L x 2.00" W x 6.56" H
• Weight: 1.95 lbs (884.5 g)
• Wrist Effort: 30 lbs at a 3,000 lb fastener
• Retract Action: Single pushbutton
• Special Feature: Vari-Max™ adjustable pull force, 600–5,000 lbf
• Thread Size: 8-32 with 100° flaring anvil
• Tool Weight: 33 oz
• Patent Status: Patent pending

Please note: this tool is dedicated to the 8-32 thread size. For a kit covering 8-32, 10-32 and 1/4-28 together, see the D-700-HL. The 10-32 version specified by Hill Air Force Base for the F-16 Falcon STAR programme is the D-700-365HL.

Applications: Rivetless floating nutplate installation, aerospace panel and access door work, airframe modification programmes, depot-level maintenance.
