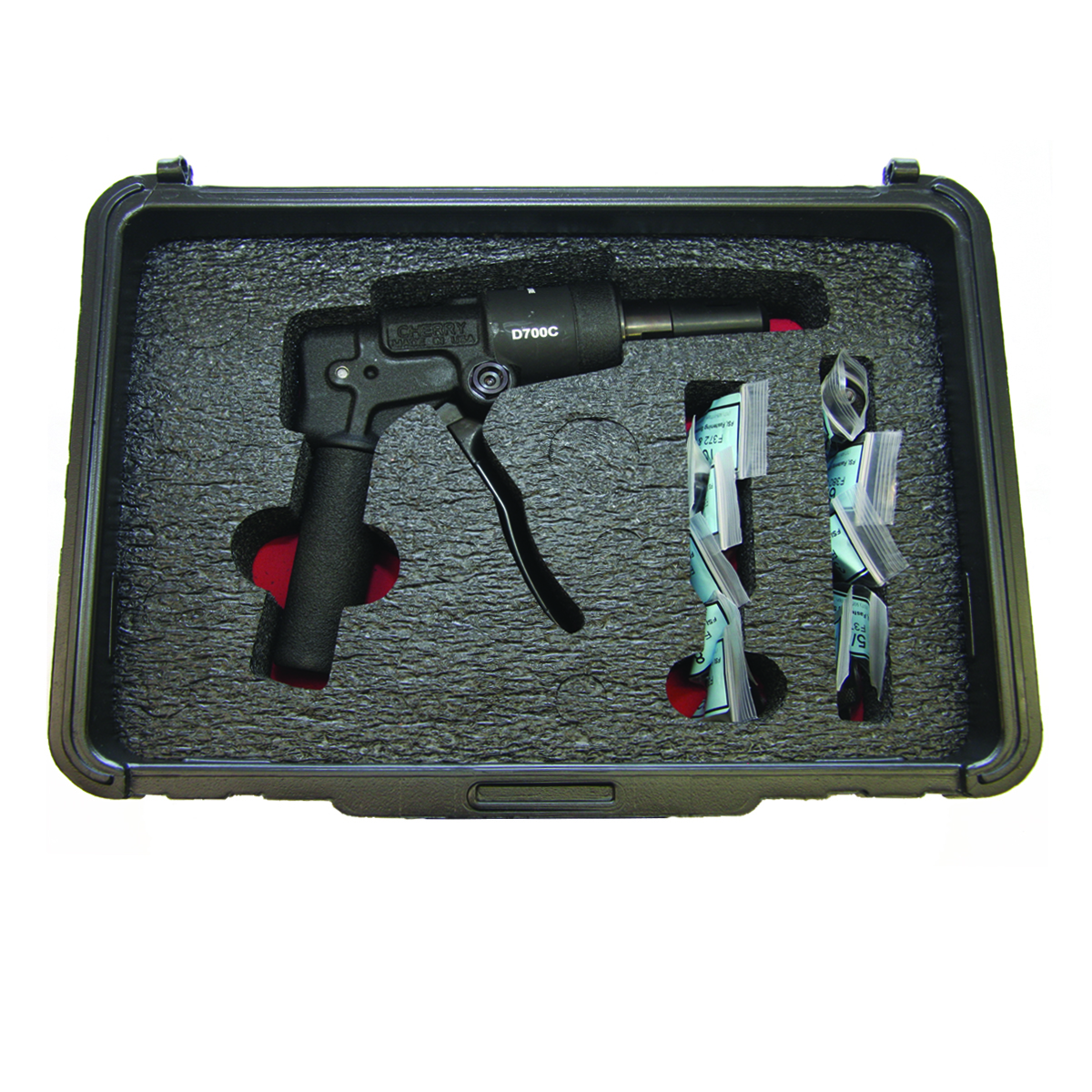

D-700-N Blind Nut Riveter Kit with Adjustable Pressure

Description

The D-700-N is FSI’s D-700C configured as a dedicated blind nut and threaded insert setter. Setting a rivet nut is a different problem from setting a rivet: too much pull force strips the insert threads or the pull-up stud, too little leaves an inadequate upset that works loose in service. The Vari-Max™ adjustable pressure control is what makes the difference, letting the operator dial pull force precisely anywhere from 600 to 5,000 lbf and repeat it.

The tool runs the nutsetting configuration — pull-up stud, turn nut and master shaft — and its two-stage valve system keeps wrist effort low as pull force rises. Rivnuts® up to 5/16″ and thin wall blind inserts up to 3/8″ are within range, and the same tool body converts back to standard blind riveting with the appropriate nose components. Field repairable, rugged cast aluminium construction.

Specifications

• Pulling Force: 5,000 lbs
• Stroke: 0.8″ (20.3 mm)
• Overall Dimensions: 7.5″ L x 2.00″ W x 6.56″ H
• Weight: 1.95 lbs (884.5 g)
• Wrist Effort: 30 lbs at a 3,000 lb fastener
• Retract Action: Single pushbutton
• Special Feature: Vari-Max™ adjustable pull force, 600–5,000 lbf

Fastener capability: Rivnuts® thru 5/16″, thin wall blind inserts thru 3/8″, blind nuts (NAS1329/30 and MS27130/31), plus AVK, TSN® and Nutsert® style inserts with the correct pull-up studs and driving anvils.

Applications: Blind rivet nut and threaded insert installation, aerospace and industrial sheet metal, panel hardware, field repair.
