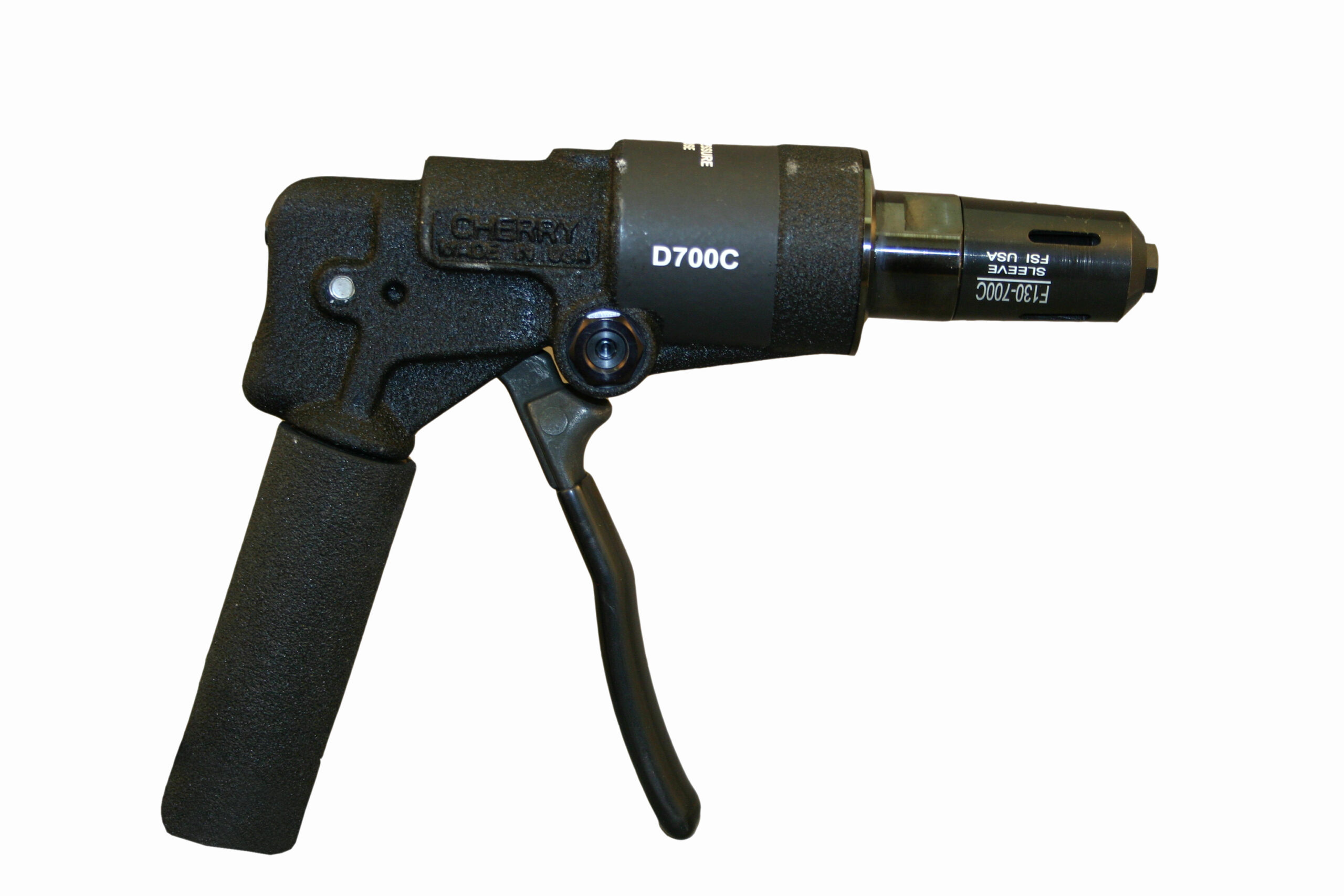

D-700C Hand Hydraulic Riveter

Description

The D-700C evolved out of the D-100 blind riveter to answer a specific request from the field: more versatility, more reliability and a tool a technician can service without sending it back. Its two-stage valve system greatly reduces the wrist effort needed to set a wide variety of straight-pull blind fasteners — 30 lbs of wrist effort at a 3,000 lb fastener — while still delivering a full 5,000 lbs of pulling force over more than 3/4″ of stroke.

Every D-700C is supplied with the Vari-Max™ adjustable pressure control (F-700-VM), which lets the operator set pull force precisely anywhere from 600 to 5,000 lbf. That matters most when upsetting a blind rivet nut or threaded insert, where too much force strips the insert threads or the pull-up stud and too little leaves an inadequate upset. The Vari-Max™ control sits on the side of the tool opposite the release button. Standard components include the F130-700C nose tube, F122-A jaws, F126-F jaw holder, F1381 jaw pusher spring, F700-041 jaw follower and F188 adapter bushing; F123 three-piece jaws are recommended when installing all-aluminum 1/4″ diameter rivets.

Specifications

• Pulling Force: 5,000 lbs
• Stroke: 0.8″ (20.3 mm)
• Overall Dimensions: 7.5″ L x 2.00″ W x 6.56″ H
• Weight: 1.95 lbs (884.5 g)
• Wrist Effort: 30 lbs at a 3,000 lb fastener
• Retract Action: Single pushbutton
• Special Feature: Vari-Max™ adjustable pull force, 600–5,000 lbf

Fastener capability: all CherryMax® style (NAS9300/M7885) blind rivets thru 1/4″, Cherry blind bolts MS90353/54 S/U type thru 3/16″, Rivnuts® thru 5/16″, and thin wall blind inserts thru 3/8″.

Please note: this listing is for the D-700C riveter only. It can be used with the nosepieces and accessories supplied in all FSI kits, which are sold separately.

Applications: Aerospace and military line maintenance, blind rivet nut and threaded insert installation, industrial sheet metal, field repair where tool serviceability matters.
