D-700-MIL-4 Hand Hydraulic Blind Rivet Tool Kit for CherryMax Installation

Description

The D-700-MIL-4 gives the aerospace and military technician the ability to install a wide variety of high break load blind fasteners with minimal wrist effort. The patented smart power valve system in the D-700C riveter is what makes that possible: it permits installation of nearly all straight-pull, single-action blind rivets through 1/4″ diameter while keeping wrist effort at 30 lbs on a 3,000 lb fastener. Made in the USA.

The kit includes four threaded quick-change rivet nosepieces for the D-700C. The riveter’s two-piece jaw system allows it to be adapted quickly to install 3/32″ and 1/8″ diameter pull-thru nutplate rivets as well as CherryMax® (NAS9300), Huck Clinch®, Allmax® (M7885), SuperMax®, Cherry SST®, Huck Max® and most CherryMax® “AB” rivets. Both supplied pulling heads cover CherryMax®, CherryMax® “AB” and CherryMax SST® in -4, -5 and -6 sizes; note that CherryMax® “AB” capability excludes aluminum.

Specifications

• Pulling Force: 5,000 lbs
• Stroke: 0.8″ (20.3 mm)
• Overall Dimensions: 7.5″ L x 2.00″ W x 6.56″ H
• Weight: 1.95 lbs (884.5 g)
• Wrist Effort: 30 lbs at a 3,000 lb fastener
• Retract Action: Single pushbutton
• Special Feature: Vari-Max™ adjustable pull force, 600–5,000 lbf

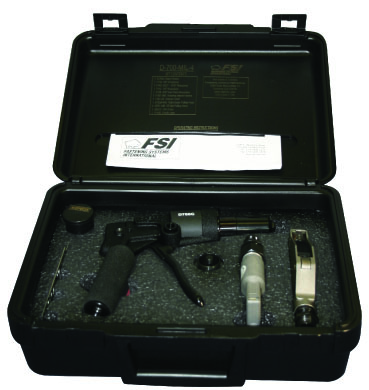

Kit Contents

• 1 × D-700C hand riveter (NSN 5120-01-397-6806)
• 1 × F1782 offset head
• 1 × F1075 right angle head (NSN 5120-01-430-5346)
• 1 × F187-1AR rotating adapter sleeve
• 1 × F187-2A adapter puller shaft
• 1 × F156 nosepiece, 3/32″
• 1 × F159 nosepiece, 1/8″
• 1 × F143 nosepiece, 3/16″ (NSN 5120-01-430-5344)
• 1 × F797 carrying case

Applications: CherryMax® installation on military and commercial airframes, aerospace MRO, pull-thru nutplate rivet work, mobility and flight line kits.
