K-1000-1 Sheet Metal Fastener Removal Kit
$18,884.00

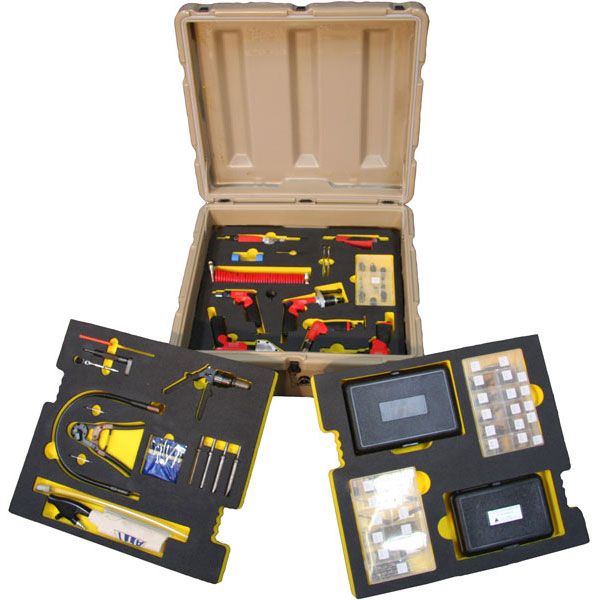

Three-tray kit holding the 57 tools needed to remove blind rivets, Hi-Loks, Jo-Bolts and collars from aircraft structure. NSN 5180-01-584-5839.
Description
The K-1000-1 is the fastener removal module of FSI’s K-1000 sheet metal system. Removal is where airframe repair starts and where most of the damage gets done — a drifted drill or the wrong collar remover turns a routine job into a hole repair. This kit carries the dedicated removal tooling for each fastener family rather than a general drill set, which is what keeps the parent structure intact.
Coverage spans blind rivets, Hi-Lok and Hi-Lite collars, Jo-Bolt fasteners and solid AD rivets. Dedicated removal kits are included for Jo-Bolts (F3060RIK) and Hi-Loks (F3539A-8), along with threaded collar removers in 1/8″ through 1/4″, knock-out punches, and a rivet shaver kit for flush work. A D-180 hand hydraulic riveter is carried in the tray so the technician can reinstall without opening the installation box.
Specifications
- National Stock Number: 5180-01-584-5839
- Trays: 3, router-cut foam
- Total Items: 57
- Fastener Coverage: Blind rivets, Hi-Lok/Hi-Lite, Jo-Bolt, solid AD, up to 1/4″ diameter
Kit Contents
- F200 chip chaser and F20-T023 pancake drill attachment
- AL3744 Hi-Lok ratchet and F3539A-8 Hi-Lok removal & installation kit
- F3060RIK Jo-Bolt removal & installation kit
- ALRCC collar removers, 1/8″ through 1/4″, and ALRGP knock-out punches
- ALTD threaded drill bits and ALJBD cobalt drill bits
- F1900RSK rivet shaver kit and F501-R rivet cutter
- FDR4000 and FDR2600R pneumatic drills, FDG10S25F die grinder
- FS0822 air body saw, FSH10P18 pneumatic shears, FRG-4X rivet hammer
- D-180 hand hydraulic riveter
Please note: this kit is one of the three modules that make up the complete K-1000 Sheet Metal Mechanics Tool Kit (NSN 5180-01-586-1897). It is stocked and sold individually under its own National Stock Number, and can also be supplied as part of the full three-box system or in the K-1000-H roll-around hangar box.
Applications: Aircraft sheet metal fastener removal, airframe disassembly, unit and intermediate level maintenance, battle damage repair.
Product Brochure
Download the full product brochure for the K-1000-1 Sheet Metal Fastener Removal Kit — including specifications, features, and application details.
Download Brochure (PDF)
