D-700-MIL-2 Hand Hydraulic Blind Rivet & Blind Bolt Tool Kit

Description

The D-700-MIL-2 evolved directly from the D-100-MIL-2 blind rivet kit, replacing the D-180 riveter with the more capable D-700C and its two-stage smart power valve. The result is a kit that installs both blind rivets and single-action blind bolts with markedly less wrist effort, while remaining field repairable — a meaningful advantage for units that cannot afford to have a tool out of service. Made in the USA.

The kit’s defining feature is the set of special CherryMax® right angle, offset and extended straight pulling heads covering all sizes thru 3/16″ oversize diameter. Beyond that, the D-700C is easily adapted to install wire draw rivets thru 3/16″ diameter, including CherryMax® “AB”, Avdel MBC, Cherrylock® “A” code and Avdel Interlock® blind rivets. The riveter accepts any of the nosepieces and accessories supplied in the D-100 series kits, so a shop already holding D-100-MIL-1 or D-100-MIL-2 tooling can share inventory across both.

Specifications

• Pulling Force: 5,000 lbs
• Stroke: 0.8″ (20.3 mm)
• Overall Dimensions: 7.5″ L x 2.00″ W x 6.56″ H
• Weight: 1.95 lbs (884.5 g)
• Wrist Effort: 30 lbs at a 3,000 lb fastener
• Retract Action: Single pushbutton
• Special Feature: Vari-Max™ adjustable pull force, 600–5,000 lbf

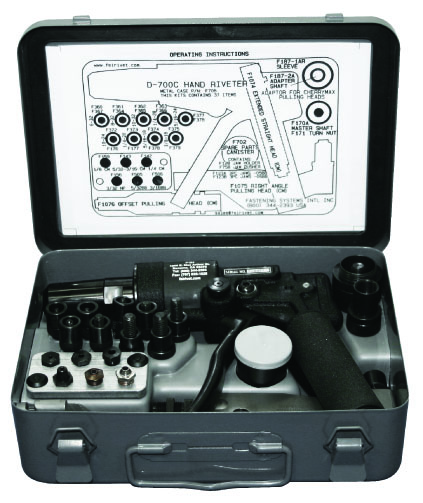

Kit Contents

• D-700C hand hydraulic riveter with Vari-Max™ control (NSN 5120-01-397-6806)
• CherryMax® extended straight pulling head
• CherryMax® right angle pulling head
• CherryMax® offset pulling head
• Adapter sleeve and adapter puller shaft
• Nosepieces and accessories compatible with the D-100 series kits

Fastener capability: all CherryMax® thru 1/4″, single-action blind bolts thru 3/16″ diameter, Rivnuts® and threaded inserts, plus wire draw rivets thru 3/16″.

Applications: Aerospace and military blind fastener installation, airframe repair, blind bolt and threaded insert work, field maintenance requiring angled or offset access.
