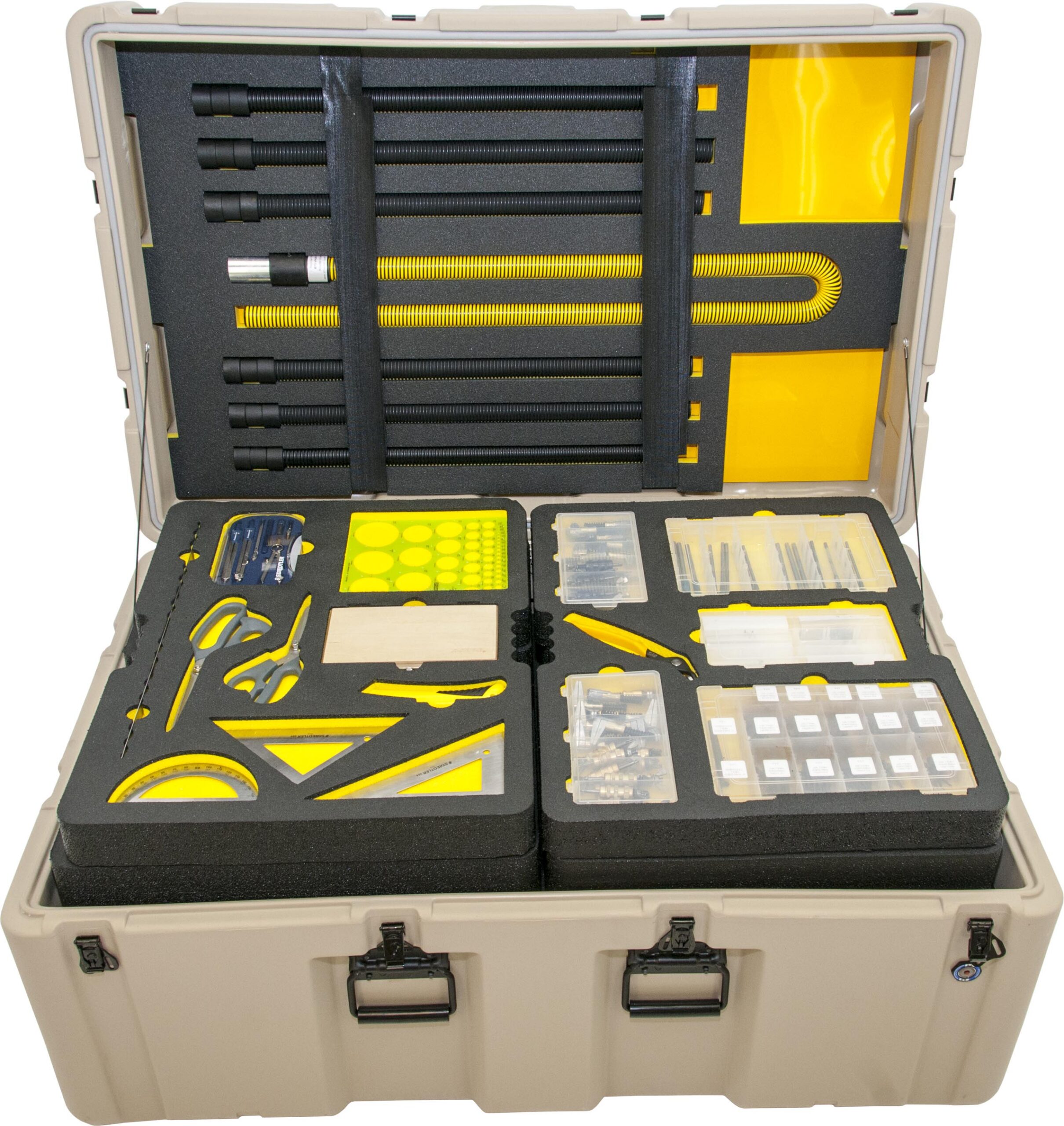

K-3000 Composite Material Repair Tool Kit

Description

The K-3000 is FSI’s composite material repair kit, equipped with the pneumatic tools, hand tools and accessories needed to complete repairs on all types of composite materials including Kevlar. Composite repair generates dust and debris that conventional sheet metal tooling simply spreads around, so the kit is built around Clayton, Sioux and Dyna-Brade® vacuum pneumatic tools and shrouds that capture contaminants at the source for a cleaner and safer workplace.

Beyond material removal and surface preparation, the kit carries installation and removal tools for blind rivets (Cherry Maxi-Bolt® and Huck type stainless steel and titanium blind bolts), Composi-Lok II® fasteners and Hi-Shear® (Hi-Lok/Hi-Lite) fasteners up to 1/4" diameter, plus a complete Heatcon bonding station with portable hot bonder, vacuum pump, digital scale and heat blankets in 10", 15" and 18" squares. Everything is supplied in router-cut foam for rapid inventory and tool control.

Specifications

• Total Box Weight (complete): 165 lbs
• Box Dimensions: 42" wide x 26" deep x 22" high with casters attached
• Foam Trays: 5 layers, 8 total trays (yellow and black), protective-coated for strength and fluid resistance
• Box Features: Extra handles, caster sets, locking cable/hasps, purge or fill valves, airtight case system
• NSN: Pending

Kit Contents

• Bottom tray — Heatcon portable hot bonder, Heatcon vacuum pump, digital scale (ounces and grams), square heat blankets (10", 15", 18"), spring and bar clamps, vacuum hoses, valves and gauges
• Tray 2 — Clayton sanders (3" and 5"), Sioux pneumatic drills (500 and 2200 RPM), Sioux router and die grinders, Dyna-Brade® pencil grinder, Dyna-Brade® 90° threaded drill
• Tray 3 — Composi-Lok II® installation & removal kit, diamond countersinks and cutting disks, 1/4" and 1/8" carbide rotary file kits, Hi-Lok/Hi-Lite installation & removal kit, cordless blind bolt installation tools
• Tray 4 — carbide brad point jobber drills, carbide dagger drill bits, threaded drills, wing nut clecos and side clamps, measuring tools, shears and cutting tools
• Tray 5 (lid) — Clayton vacuum hoses for dust removal

Please note: the portable vacuum system with HEPA filtration ships in a separate box and is not included in the basic K-3000 kit. For the configuration supplied with the vacuum system, see the K-3000-MIL-1.

Applications: Composite and Kevlar airframe repair, hangar maintenance programs, hot bonded repairs, Composi-Lok II® and Hi-Lok/Hi-Lite fastener work.
