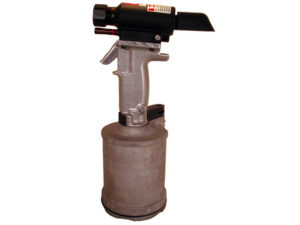

G87D – Cherry Rivet Gun
$4,250.00
Heavy-duty lockbolt and blind-bolt riveter with hydraulic piston return. 9,500 lbs pulling force. Large bayonet mount, Huck® 353 compatible. NSN 5130-00-760-1360.
Description
The Cherry® G87D is the heavy-duty riveter in the lockbolt range, delivering 9,500 lbs of pulling force with hydraulic piston return. It handles lockbolt and blind-bolt installation up to -12 diameter, well beyond the reach of the medium-duty tools.
The tool uses the large bayonet mounting system shared with the G85D-S and compatible with the Huck® 353 model. An extensive pulling head selection covers straight, chisel-nose, offset, swivel, and self-releasing configurations across -4 through -12 diameters.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Stroke: 0.562 in (14.3 mm)
- Pulling force: 9,500 lbs (42.3 kN) @ 90 psi
- Weight: 10.75 lbs (4.875 kg)
- Noise level: 74.2 dB(A)
- Vibration: Less than 2.5 m/s²
- Air consumption: 0.60 SCF/cycle (17 L/cycle)
- Lockbolt diameters: -4 through -12
- Mounting: Large bayonet — shared with G85D-S, compatible with Huck® 353
- NSN: 5130-00-760-1360
Applications
Heavy structural lockbolt installation for NAS lockbolts in airframe manufacturing, defense, and heavy assembly.
Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
Product Brochure
Download the full product brochure for the G87D – Cherry Rivet Gun — including specifications, features, and application details.
Download Brochure (PDF)Tool Manual
Operating and service instructions for G87D. Opens in a new tab.
Download Manual (PDF)Need help with this tool? FSI is a factory-authorized repair center — see our repair services or call (707) 935-1170.
