G704B-40SH – CherryMAX® Split Power Riveter

Description

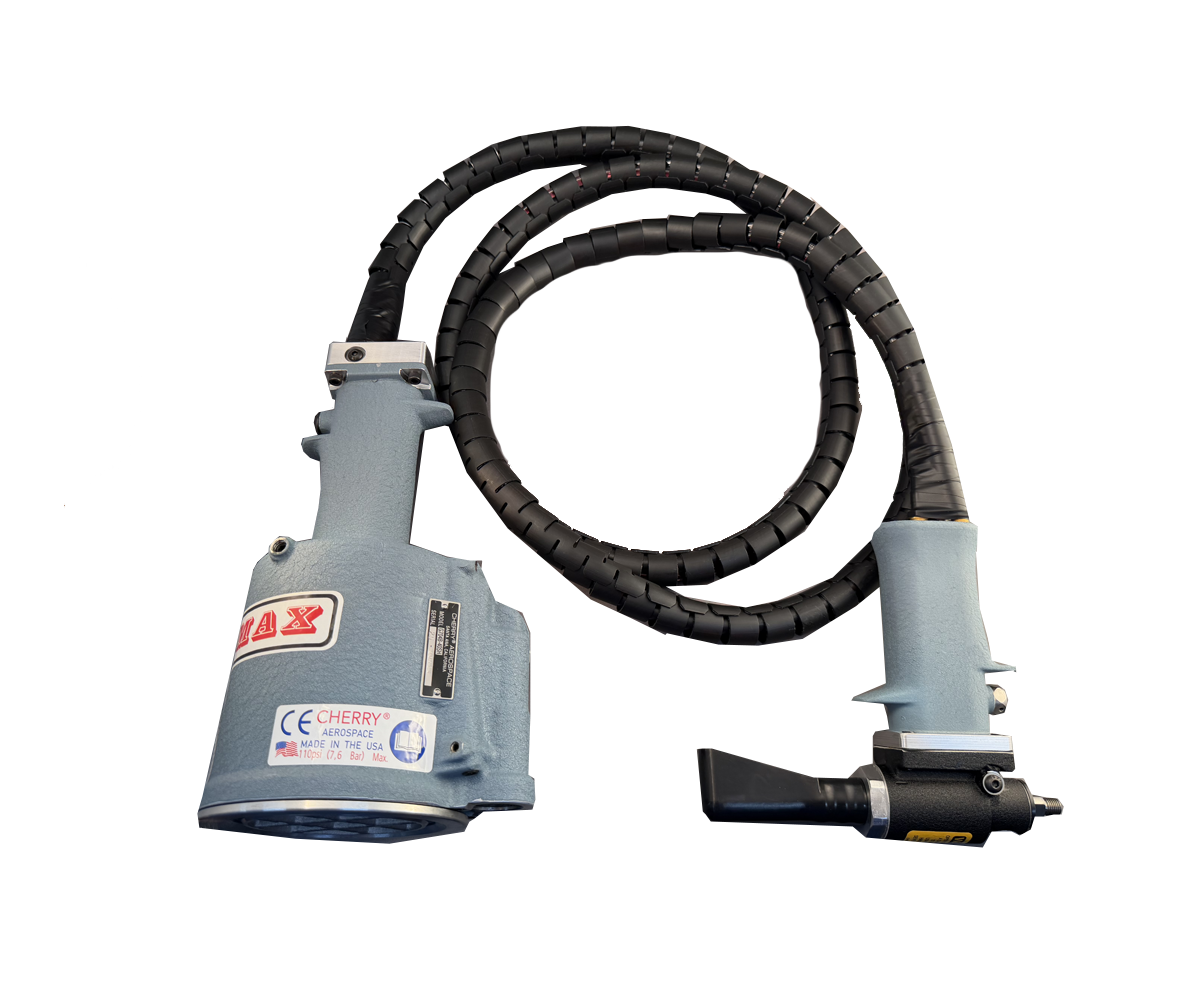

The Cherry® G704B-40SH is the extended-reach split version of the G704B, fitted with an 8-foot hose. The added hose length gives operators significantly more freedom of movement around large structures while the heavy power unit stays on the floor.

Functionally identical to the G704B-SR apart from hose length, the 40SH is the right pick when the work moves across a wide area or the power unit must sit well clear of the structure. Straight, right-angle, and offset pulling heads are supported.

Specifications

• Weight: 4.5 lbs (2.0 kg), power unit only
• Stroke: 0.518 in (13.2 mm)
• Pulling capacity: 3,136 lbs @ 90 psi (13.9 kN)
• Operating air pressure: 90–110 psi at inlet (6.2–7.6 bar)
• Air consumption: 4 CFM at 20 cycles per minute
• Noise level: Does not exceed 85 dB(A)
• Hose length: 8 feet
• Pulling heads: Straight, right angle, offset

Applications

Large-structure assembly, wing and fuselage work, and confined-access installation requiring extended operator reach.

Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
