G704BCMR – CherryMax Riveter Tool Kit
$5,006.00
Complete G704B CherryMAX® kit: riveter, three pulling heads, grip gage, air bleeder, stem catcher, and case. Process manuals and documentation included.
Description
The G704BCMR is the complete CherryMAX® tool kit built around the medium-duty G704B riveter. Rather than sourcing pulling heads and accessories separately, the kit ships ready to install -4, -5, and -6 diameter CherryMAX® fasteners in straight, offset, and right-angle applications from the moment it is opened.
Process manuals, a reference card, and full tool documentation are included — which matters for shops working to documented process control.
Specifications
- Riveter: G704B medium-duty single-action, 3,100 lbs @ 90 psi
- Pulling head coverage: -4, -5, and -6 diameter; straight, offset, right angle
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Documentation: Process manuals, reference card, tool documentation included

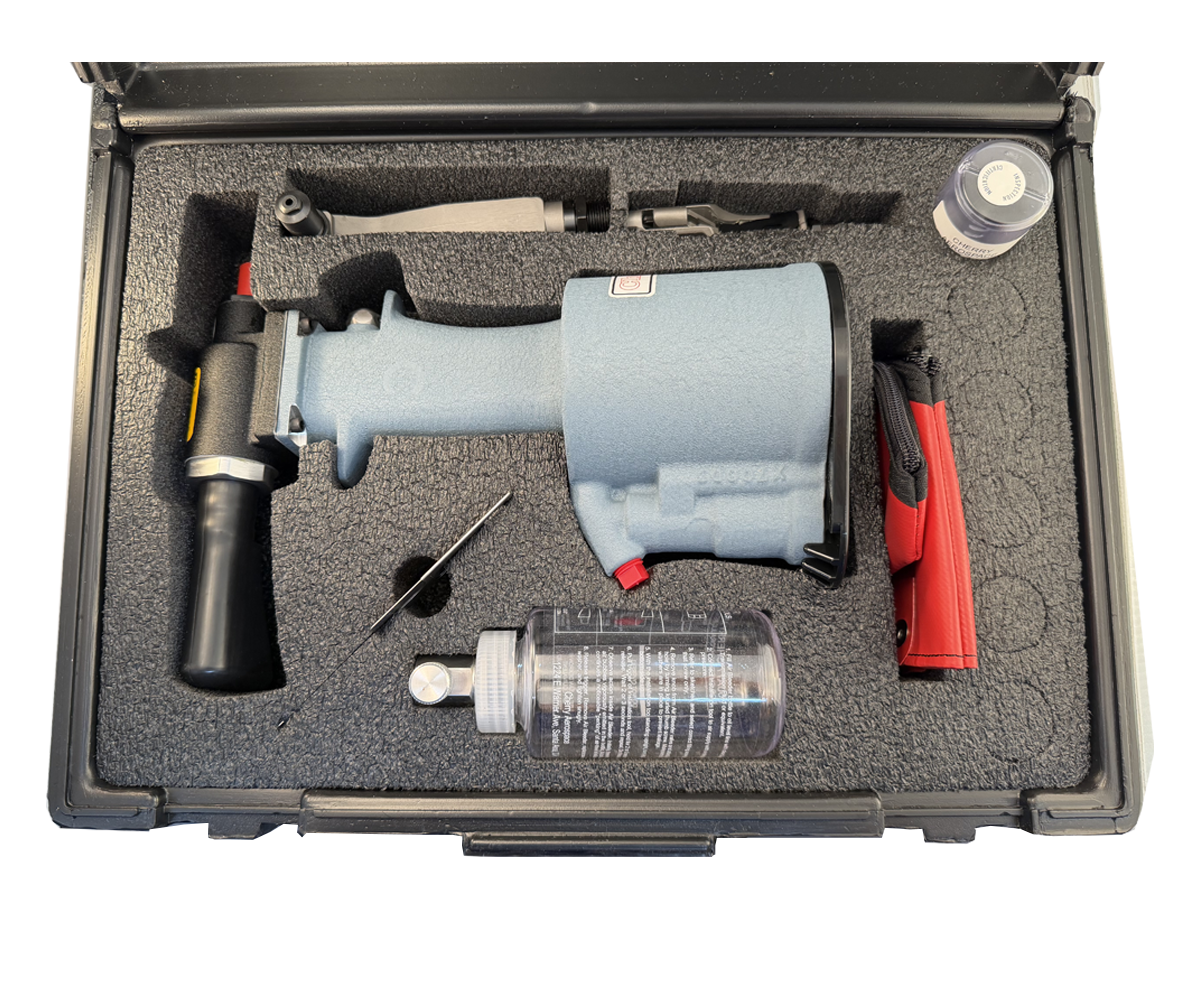

Kit Contents
- G704B Medium Duty, Single Action Riveter ×1
- H701B-456 Straight Pulling Head (-4, -5, -6 dia) ×1
- H781A-456 Offset Pulling Head (-4, -5, -6 dia) ×1
- H753A-456 Right Angle Pulling Head (-4, -5, -6 dia) ×1
- 269C3 CherryMAX®/CherryLOCK® Grip Selector Gage ×1
- 700A77 Hydraulic Air Bleeder ×1
- 670A20 Stem Catcher Bag ×1
- P-1393 Plastic Casing ×1
Applications
Complete CherryMAX® installation capability for airframe assembly, MRO, and field service teams.
