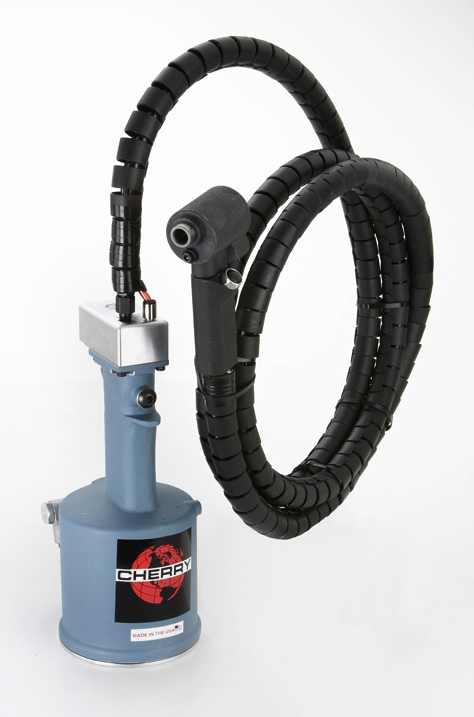

G84-LS – Cherry Split Riveter, Offset
$6,295.00
Split version of the G84 with offset piston design for hard-to-access structures. 5,700 lbs force; 2.0 lb head. Straight or pistol-grip configuration.
Description
The Cherry® G84-LS is a split version of the G84 built specifically for hard-to-access structures. An offset piston design keeps the working head compact at just 2.0 lbs, while the power unit — the bulk of the 11.8 lb total — sits away from the work.
The hand-held unit can be configured straight (in-line) or as a pistol grip, so the tool adapts to the approach angle the structure allows rather than the other way around. A full adapter range makes it compatible with virtually all Cherry pulling heads and attachments.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max. at tool
- Stroke: 0.530 in (13.5 mm)
- Pulling force: 5,700 lbs (25.32 kN) @ 90 psi
- Weight: Total 11.8 lbs (5.35 kg); head only 2.0 lbs (0.91 kg)
- Noise level: 66.5 dB(A)
- Vibration: 4.0 m/s²
- Air consumption: 0.34 SCF/cycle (9.63 L/cycle)
- Configurations: Straight (in-line) or pistol grip
- Adapters: 744-500, 744-600, 744-700, 744-800
Applications
Restricted-access airframe structures, interior assembly, and repair work where a standard lockbolt riveter cannot be positioned.
Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
