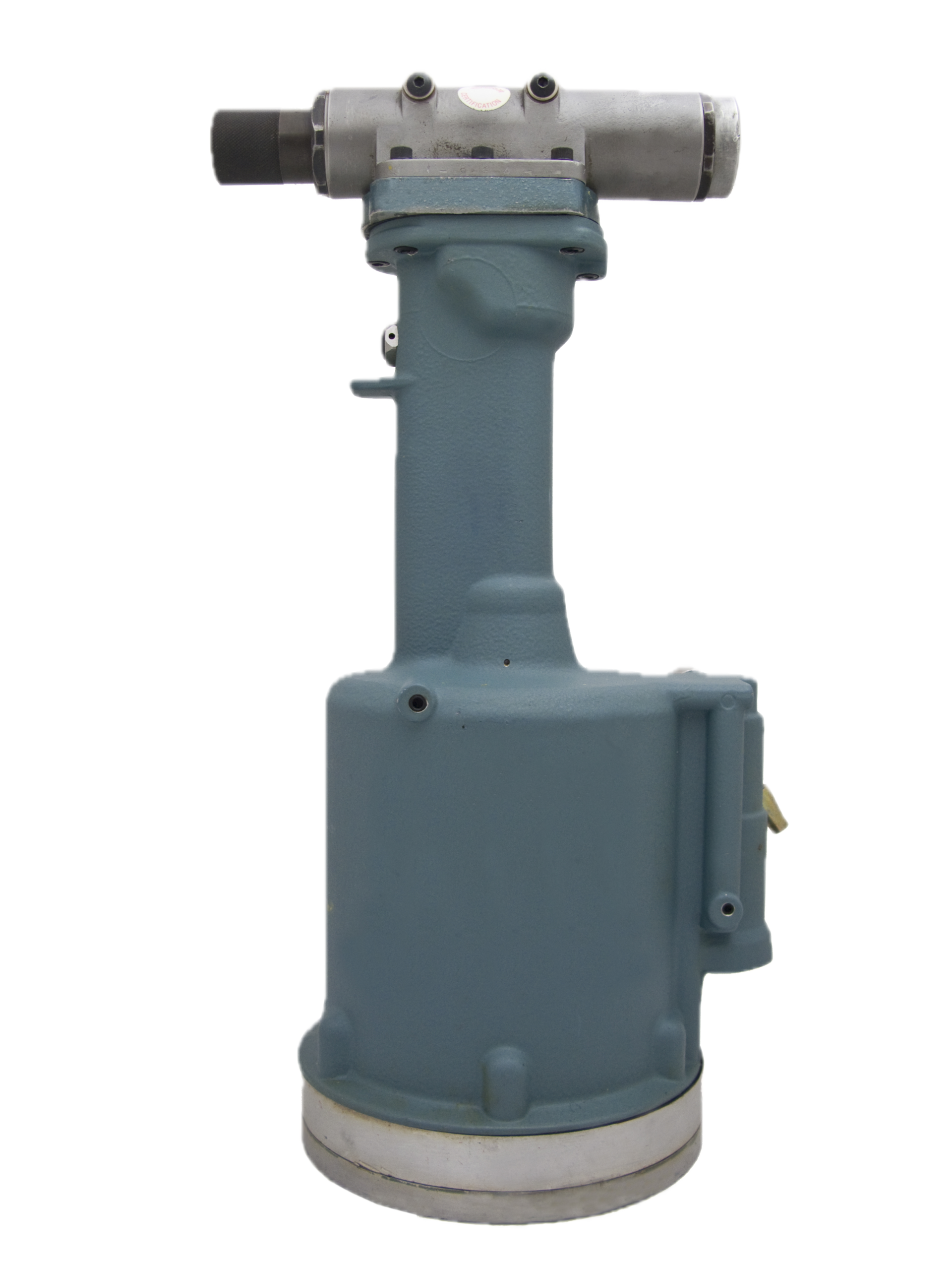

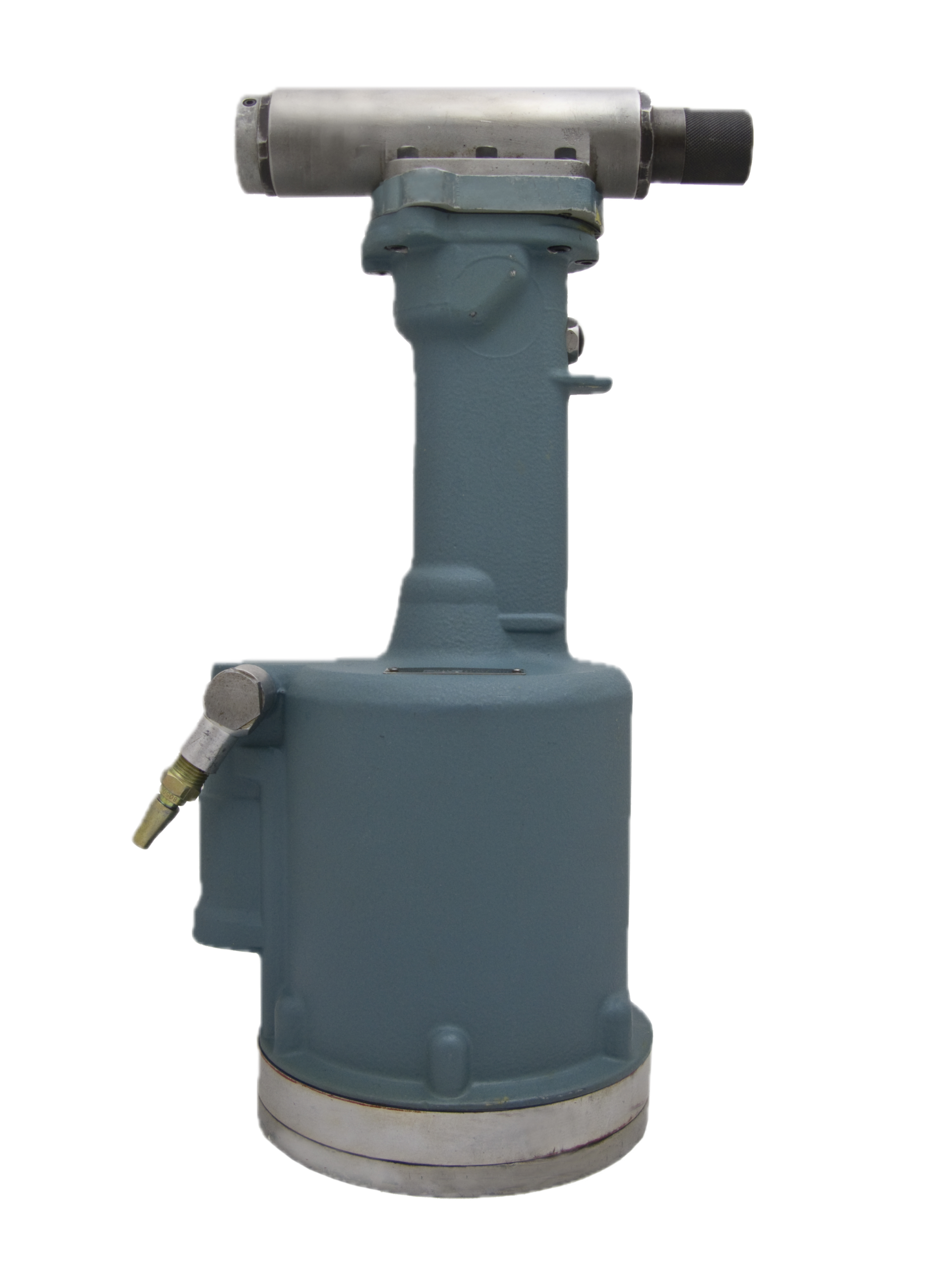

G689 – Cherry-Lock Riveter
$17,125.00
Heavy-duty double-action CherryLOCK® riveter. 1.475 in stroke, 3,800 lbs pulling force. All-grip capability across -3 to -8 diameters.
Description
The Cherry® G689 is the heavy-duty double-action riveter for CherryLOCK® wiredraw rivets. Its 1.475-inch stroke — the longest in the double-action range — is what delivers all-grip capability across every diameter from -3 through -8, in both aluminum/Monel and stainless steel.
The tool uses a custom mounting system compatible with H681 double-action pulling heads, and with the correct adapters (680B46, 680B57, 680B205) it will also run front and side eject heads, extending it to MS, CherryLOCK® ‘A’, and CherryMAX® fasteners.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Stroke: 1.475 in (37.47 mm)
- Pulling force: 3,800 lbs (16.9 kN) @ 90 psi
- Weight: 12.85 lbs (5.90 kg)
- Noise level: 74.1 dB(A)
- Vibration: Less than 2.5 m/s²
- Air consumption: 0.50 SCF/cycle (14.2 L/cycle)
- Rivet diameters: -3, -4, -5, -6, -8 — all grips
- Fastener standards: NAS1398, NAS1399, NAS1738
Applications
CherryLOCK® wiredraw rivet installation across the full diameter range in airframe assembly and structural repair.
Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
Product Brochure
Download the full product brochure for the G689 – Cherry-Lock Riveter — including specifications, features, and application details.
Download Brochure (PDF)
