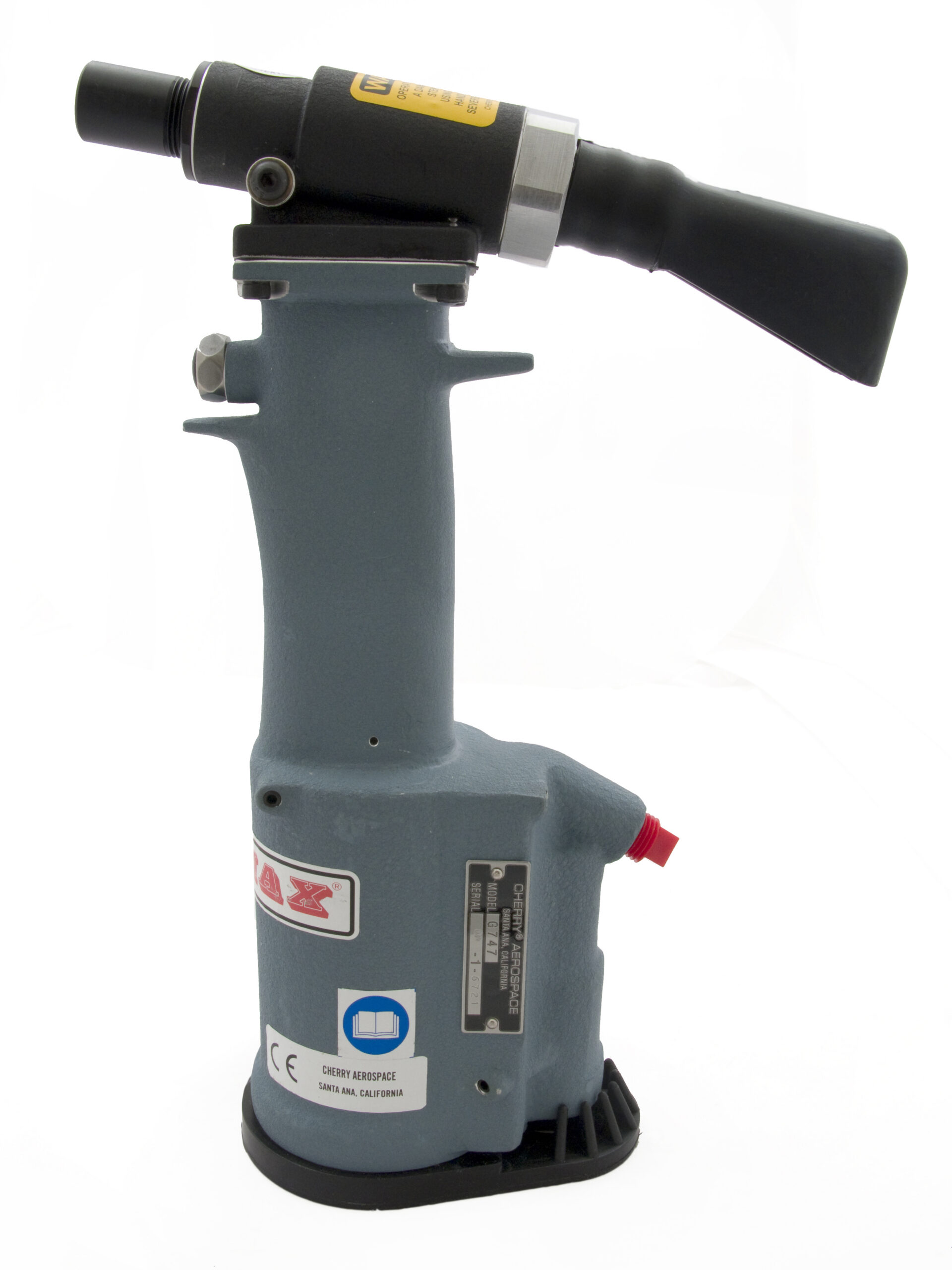

G747 Pneumatic Riveter
$1,636.00
Compact light-duty CherryMAX® riveter. 2,100 lbs pulling force at just 3.5 lbs. NSN 5130-01-044-7206. Pulling heads sold separately.
Description
The Cherry® G747 is the compact member of the CherryMAX® riveter family — 3.5 lbs with 2,100 lbs of pulling force, an unusually strong power-to-weight ratio. For high-volume repetitive installation, that difference compounds over a shift.
It uses the CherryMAX® mounting system with the full range of pulling heads and adapters. The G747 is the recommended tool for NAS9312 CherryMAX® rivets in -4, -5, and -6 diameters.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Stroke: 0.437 in (11.1 mm)
- Pulling force: 2,100 lbs (9.34 kN) @ 90 psi
- Cycle time: Approximately one second
- Weight: 3.5 lbs (1.59 kg)
- Noise level: 71 dB(A)
- Vibration: Less than 2.5 m/s²
- Air consumption: 0.09 SCF/cycle (2.55 L/cycle)
- Grip capability: All grips on CherryMAX®, SST®, and MAXIBOLT®
- NSN: 5130-01-044-7206
Applications
High-volume airframe assembly, overhead and awkward-position work, MRO, and defense manufacturing.
Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
