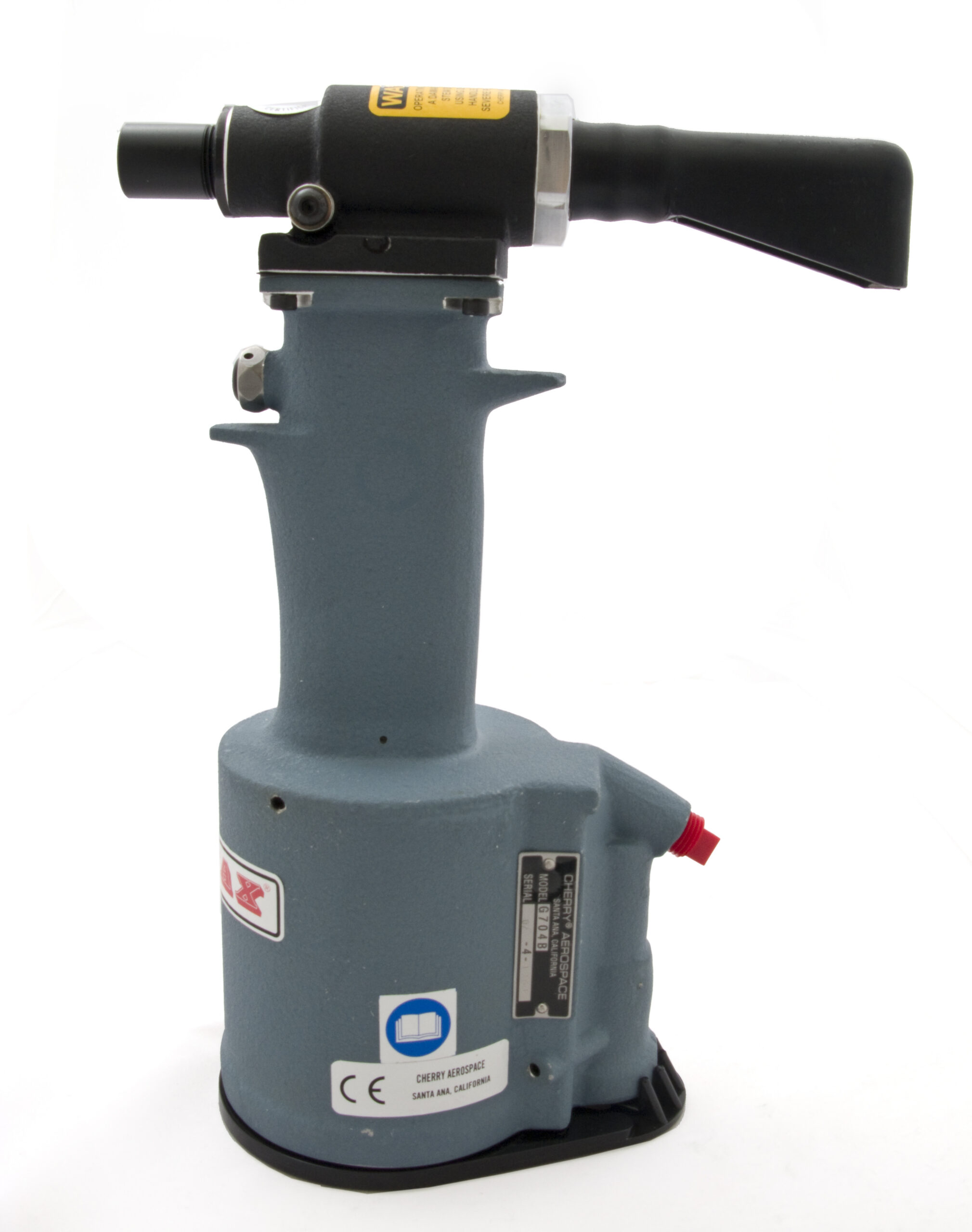

G704B CherryMax Riveter

Description

The Cherry® G704B is a medium-duty pneumatic-hydraulic riveter built for optimum CherryMAX® installation. Its all-metal housing stands up to rugged shop and hangar environments, and the tool carries National Stock Number 5130-01-393-1584 (Military Part Number M85188T2) for defense procurement.

The tool uses the CherryMAX® mounting system, supported by a wide range of pulling heads and adapters that cover most of the Cherry blind fastening line. Straight, offset, and right-angle heads let a single riveter handle open panel work and tight interior access without changing platforms.

Specifications

• Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
• Stroke: 0.510 in (12.954 mm)
• Pulling force: 3,100 lbs (13.79 kN) @ 90 psi
• Cycle time: Approximately one second
• Weight: 4-1/4 lbs (1.93 kg)
• Noise level: 71 dB(A)
• Vibration: Less than 2.5 m/s²
• Air consumption: 0.16 SCF/cycle (4.53 L/cycle)
• Grip capability: All grips in CherryMAX®, SST®, and MAXIBOLT®
• NSN: 5130-01-393-1584 (M85188T2)

Applications

Airframe assembly, structural repair, MRO, and defense manufacturing where CherryMAX® blind fasteners are specified.

Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
