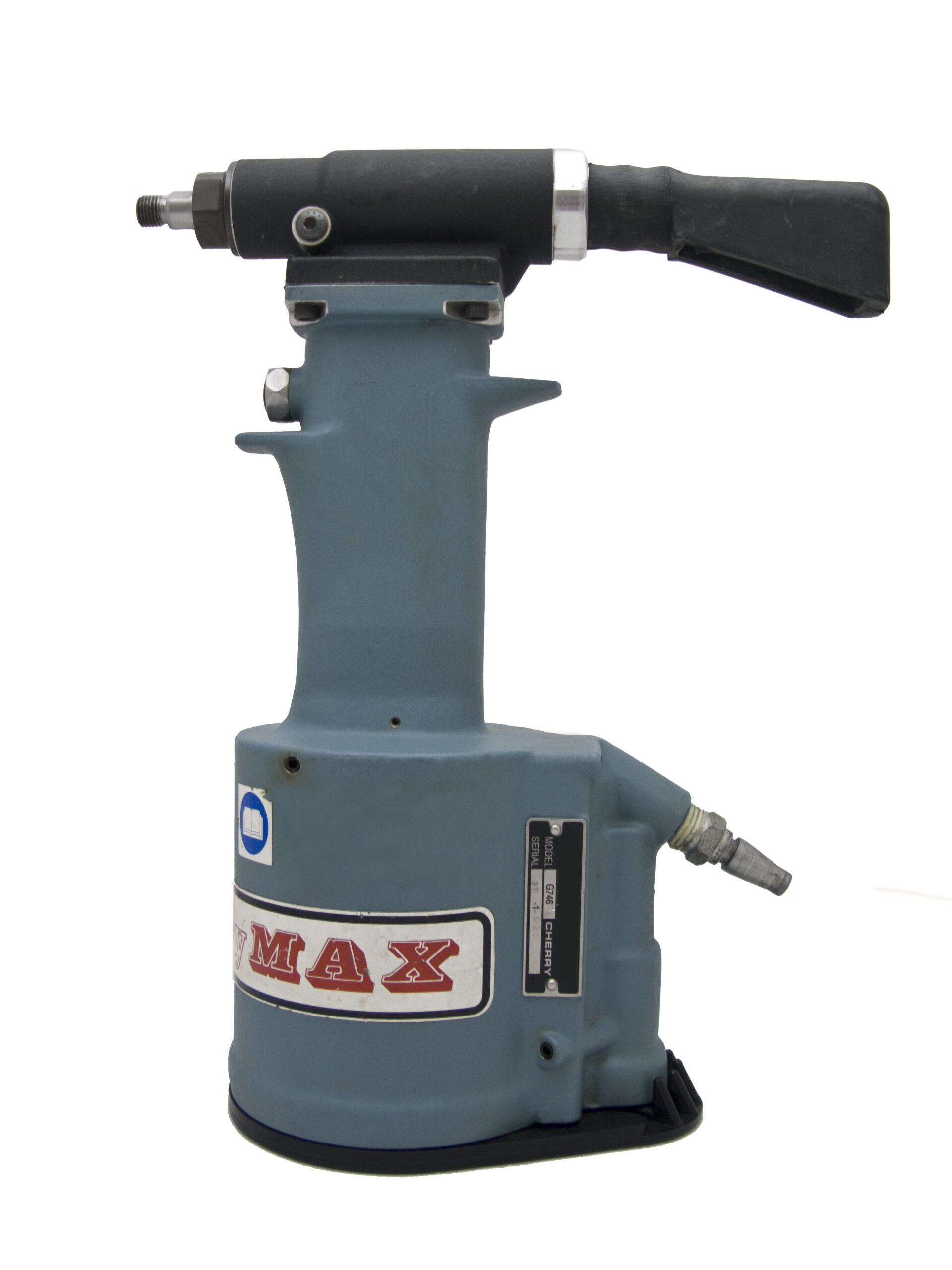

G746A Pneumatic Riveter
$1,725.00
Light-duty long-stroke pneumatic-hydraulic riveter for CherryMAX® ‘AB’ and CherryLOCK® fasteners. 1,850 lbs force, 4.25 lbs. NSN 5130-01-338-3403.
Description
The Cherry® G746A is a light-duty, long-stroke pneumatic-hydraulic riveter optimized for wiredraw fasteners — CherryMAX® ‘AB’ and CherryLOCK®. Its 0.875-inch stroke is the defining feature, delivering the extended travel these fastener types require.
The tool uses the CherryMAX® mounting system and accepts a wide range of pulling heads and adapters. Notably, the long stroke gives the G746A all-grip capability on CherryMAX® ‘AB’, CherryLOCK® ‘A’, MBC®, and MS/nut-plate rivets — broader grip coverage than the shorter-stroke riveters in the range.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Stroke: 0.875 in (22.23 mm)
- Pulling force: 1,850 lbs (8.23 kN) @ 90 psi
- Cycle time: Approximately one second
- Weight: 4-1/4 lbs (1.93 kg)
- Noise level: 72 dB(A)
- Vibration: Less than 2.5 m/s²
- Air consumption: 0.25 SCF/cycle (7.08 L/cycle)
- Grip capability: All grips on CherryMAX®, SST®, MBC®, and MS/nut-plate rivets
Applications
Wiredraw fastener installation in airframe assembly and MRO where extended grip range is required.
Recommended for -4 and -5 diameter MAXIBOLT® fasteners only, due to power limitations. Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
Product Brochure
Download the full product brochure for the G746A Pneumatic Riveter — including specifications, features, and application details.
Download Brochure (PDF)Tool Manual
Operating and service instructions for G746A. Opens in a new tab.
Download Manual (PDF)Need help with this tool? FSI is a factory-authorized repair center — see our repair services or call (707) 935-1170.
