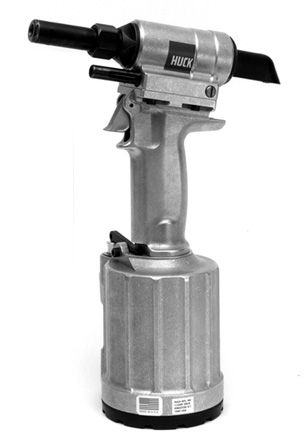

244X – TOOL, Pneuraulic – INLINE

Description

The Huck® 244X is a pneudraulic installation tool for aerospace blind fasteners and lockbolts. Huck pneudraulic tools use self-contained hydraulics to convert shop air into high, uniform pulling force — delivering consistent clamp-up fastener after fastener, which is exactly what structural work demands.

Comfortable grips, low-effort trigger action, and light weight reduce operator fatigue across a full shift, while chrome-plated piston rods and a low moving-part count support long service life and straightforward maintenance.

Specifications

• Type: Huck® pneudraulic installation tool
• Stroke: 0.562 in (14.27 mm)
• Pull capacity: 4,606 lbs @ 90 psi (20.49 kN @ 6.2 bar)
• Weight: 5 lbs (2.27 kg)
• Installation rate: 30 per minute
• Fastener capacity: 3/16 in and 1/4 in diameter
• Flow rate: 6.3 scfm (178 lpm)
• Noise level: 75 dB(A) @ 90 psi
• Construction: Stainless steel sleeves in head and handle assembly
• Operating air pressure: 90 psi (6.2 bar) shop air
• Hydraulic fluid: ATF meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent
• Operating temperature: 32 to 125°F (0 to 51.7°C)
• Manufacturer: Huck® / Howmet Fastening Systems

Applications

Aerospace airframe assembly, structural repair, defense manufacturing, and industrial assembly using Huck® blind fasteners and lockbolts.

Nose assemblies are not supplied with the tool and must be ordered separately to match your fastener type and diameter. See the Brochure tab for nose assembly selection.
