K-2000-MIL-1 Airframes Sheet Metal Kit with Compressor

Description

The K-2000-MIL-1 is the self-sufficient version of FSI’s unit level sheet metal kit: it adds a dedicated compressor box so the pneumatic tools can be run without shop air. That is the whole argument for this configuration over the standard K-2000 — at unit level, and particularly in deployed or austere settings, an air source cannot be assumed. Developed for unit level maintenance, it covers fastener removal, surface preparation and fastener installation for blind rivets (CherryMax®), blind bolts, solid AD buck rivets, Jo-Bolts and Hi-Loks from 3/32″ to 1/4″ diameter.

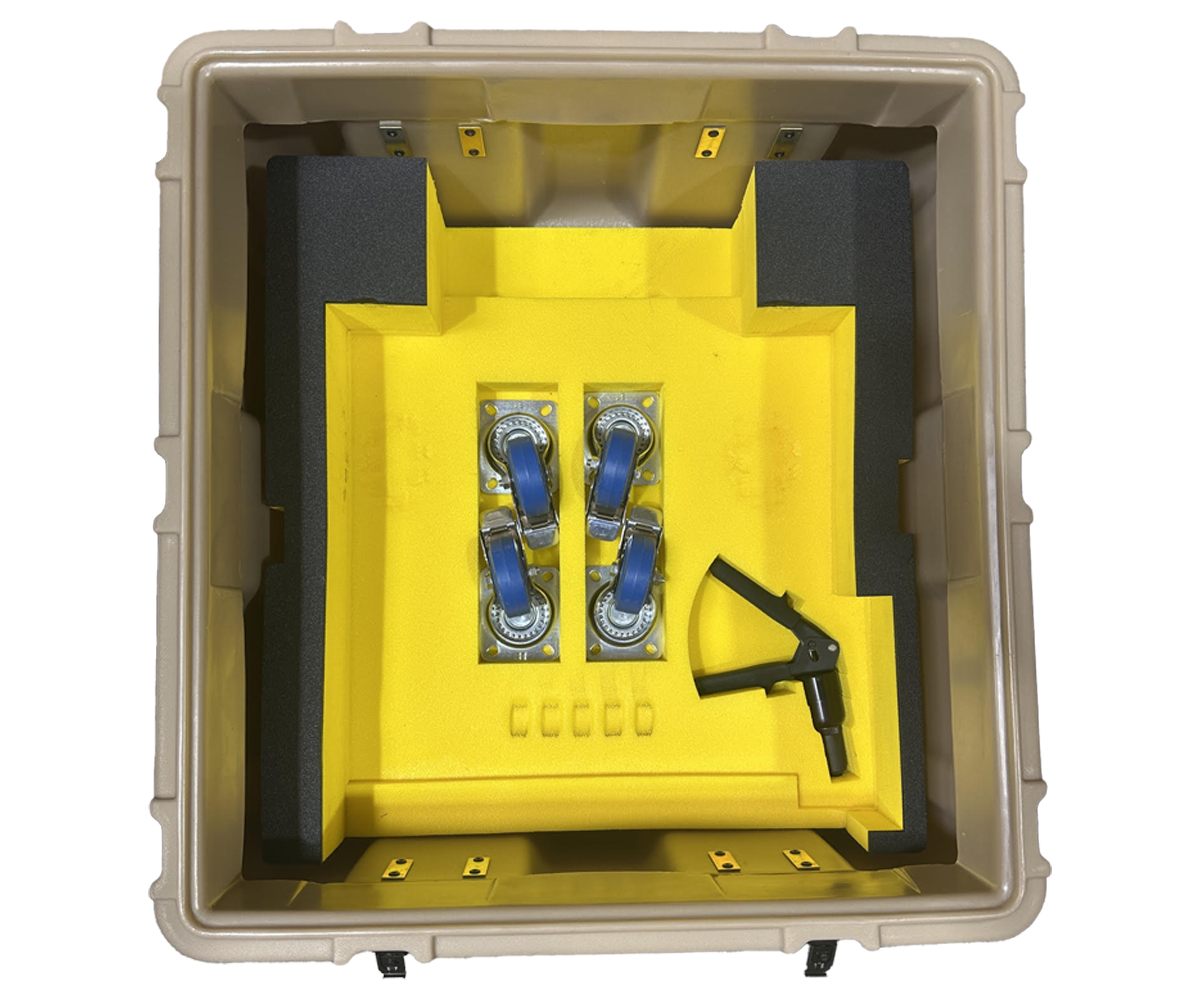

The kit is housed in two Hardigg® US Army approved transportation cases equipped with casters and extra carry handles. The main box carries the same five-tray tool complement as the K-2000, featuring the PT-4000H cordless riveter, the D-700-MIL-2 hand hydraulic blind rivet and blind bolt kit and the D-180 hand hydraulic riveter. The second box holds the compressor and hoses, plus an additional D-180 riveter.

Kit Contents

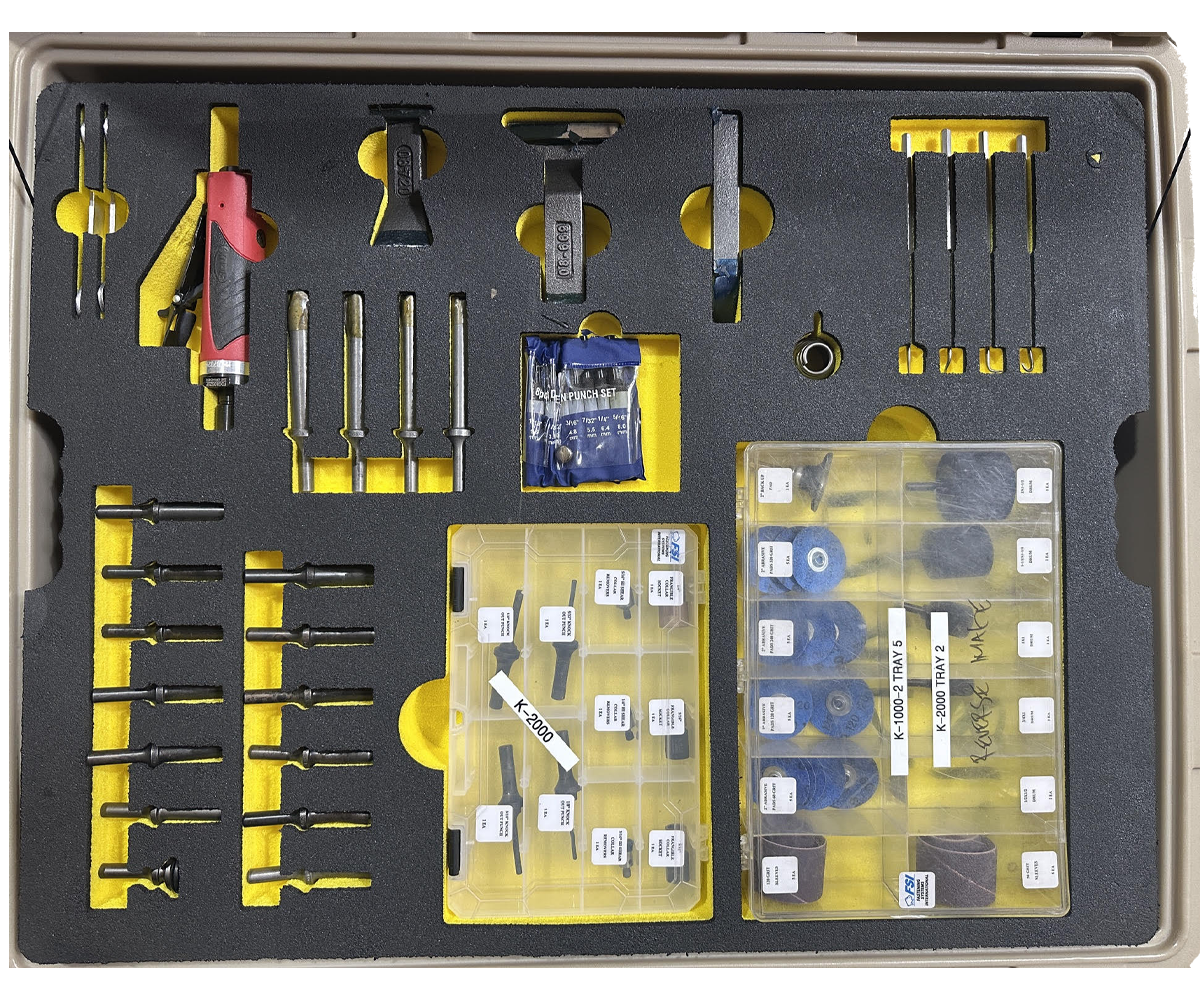

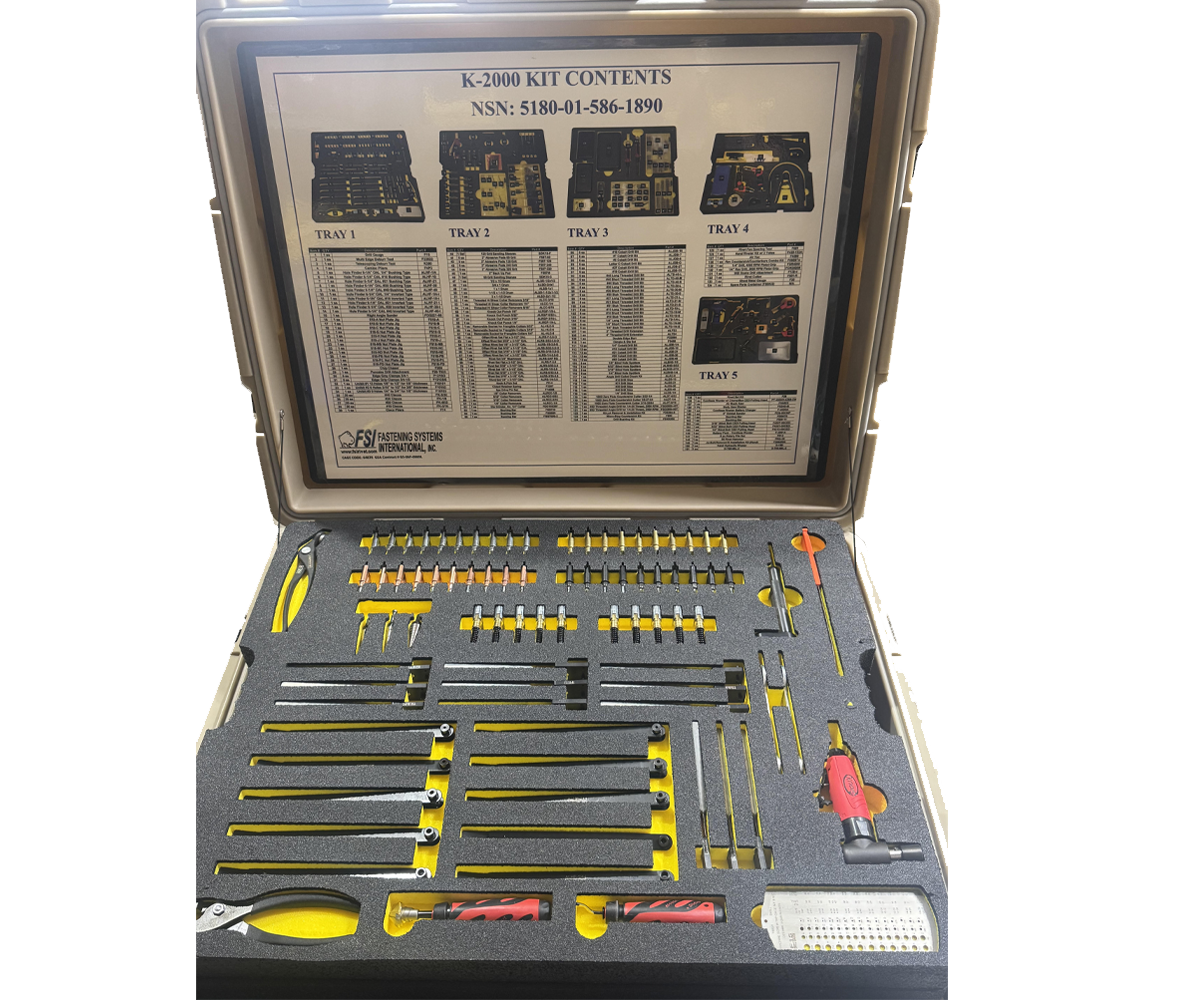

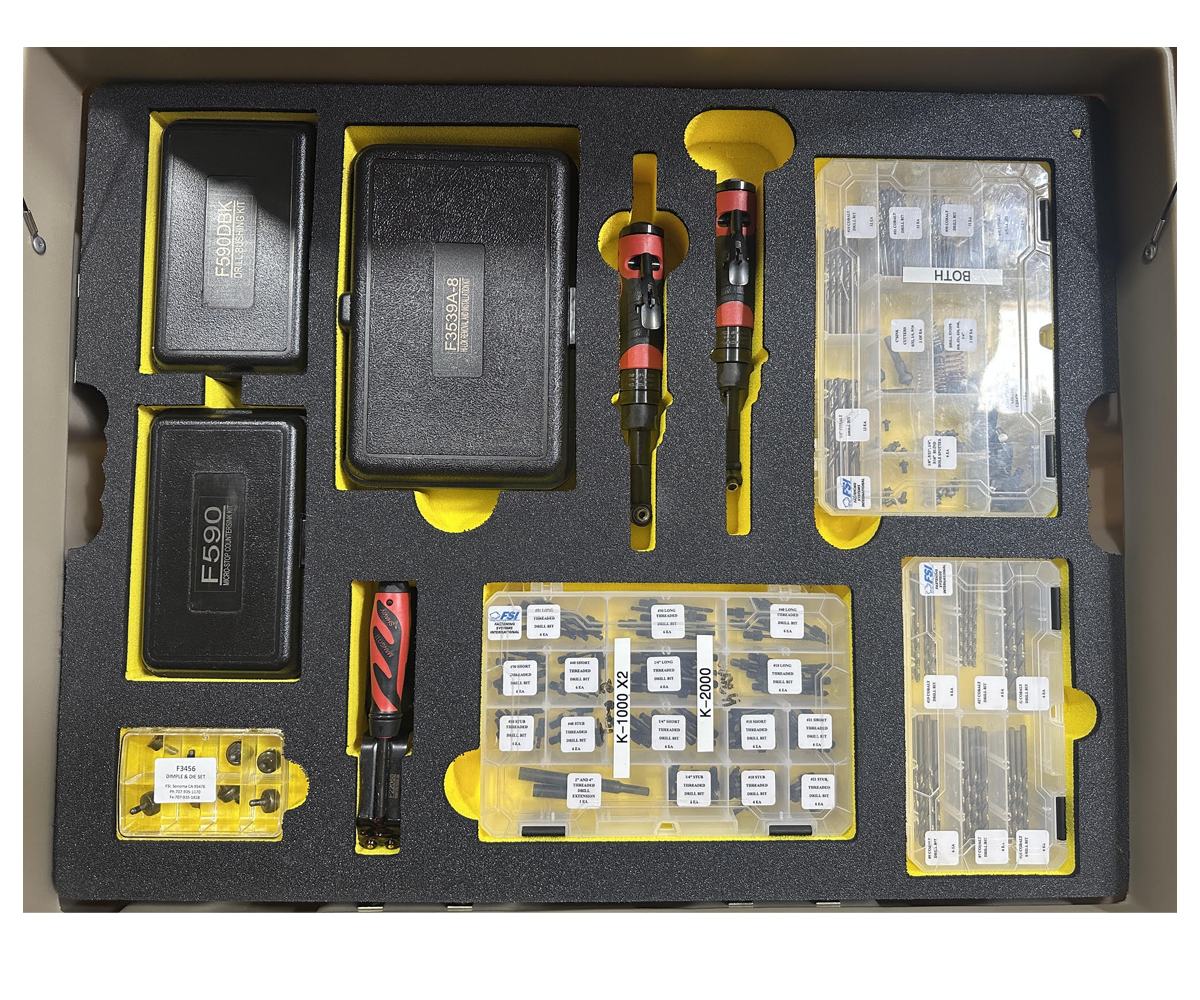

• Box 1 — five-tray unit level sheet metal tool set: hole finders, nutplate jigs, clecos and pliers, threaded and cobalt drill bits, reamers, rivet sets (standard and offset), bucking bars, collar removers, knock-out punches, countersink and deburr tooling, pneumatic drills, sanders and die grinders

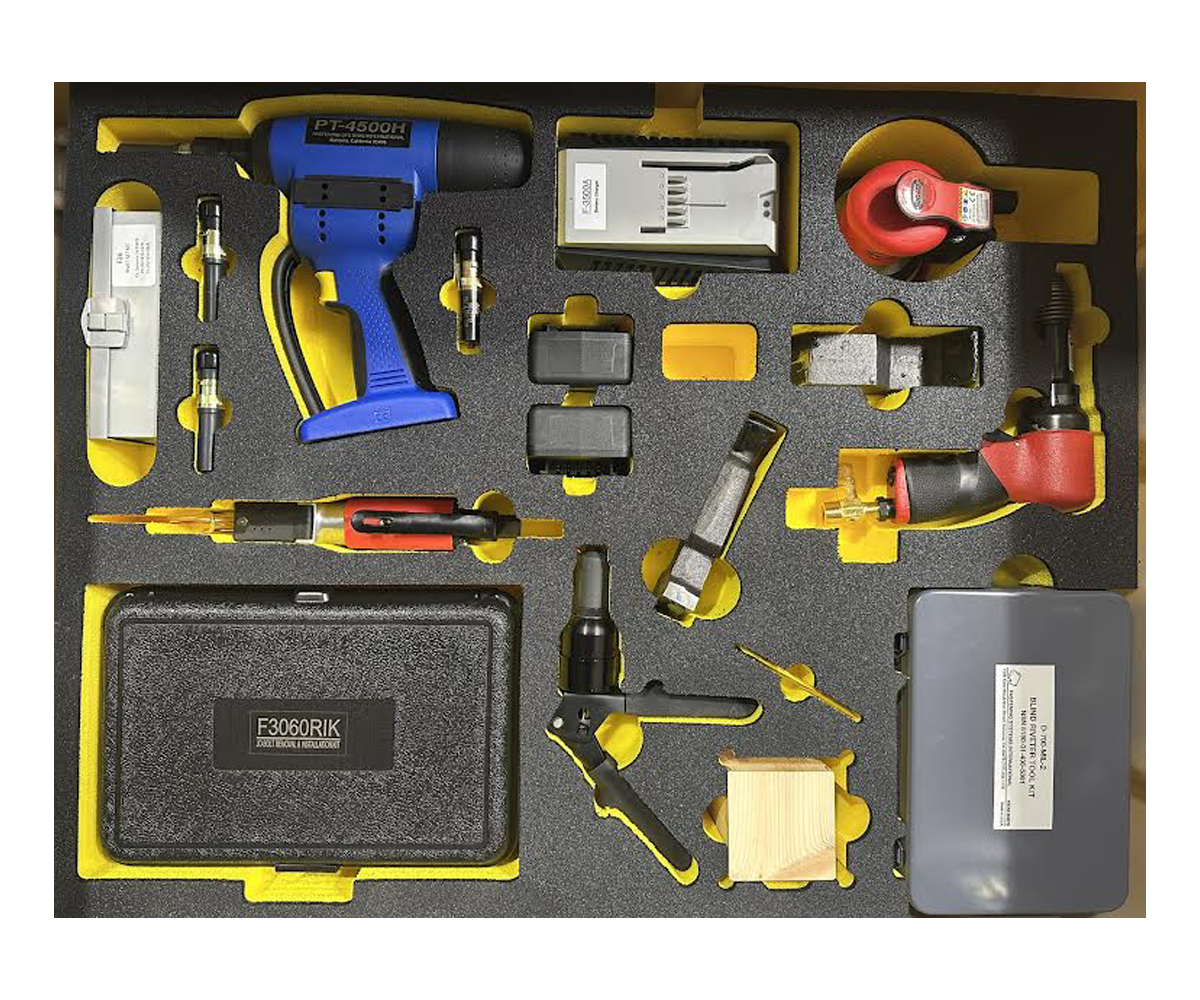

• PT-4000H-4258-CED cordless riveter with CherryMax® CED pulling head, F-4000A charger, F-3001A battery pack
• F4301-05CED, F4307-06CED and F4313-08CED blind bolt CED pulling heads
• Complete D-700-MIL-2 hand hydraulic blind rivet & blind bolt kit
• D-180 hand hydraulic riveter
• F3060RIK Jo-Bolt removal & installation kit, F3539A-8 Hi-Lok removal & installation kit

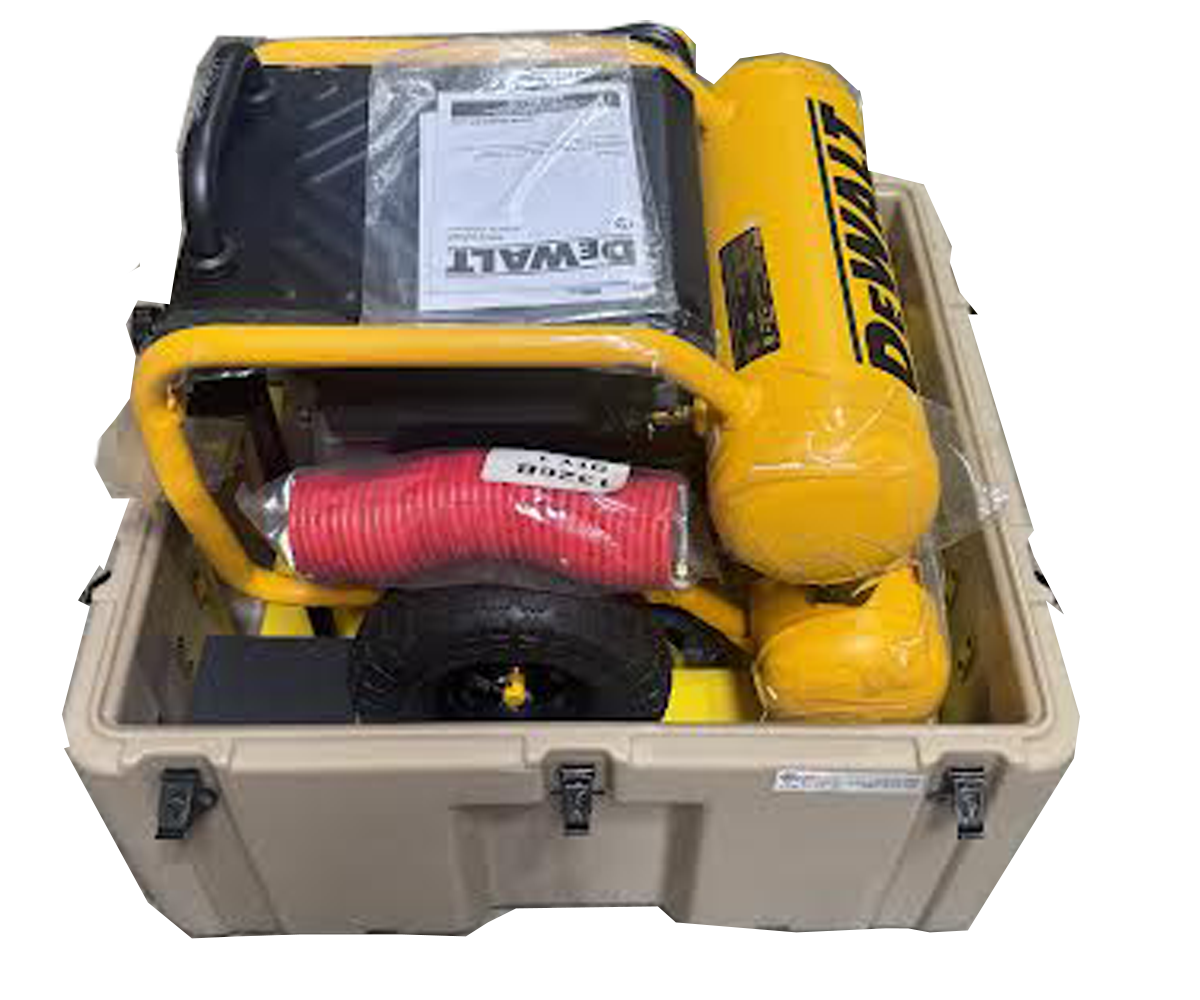

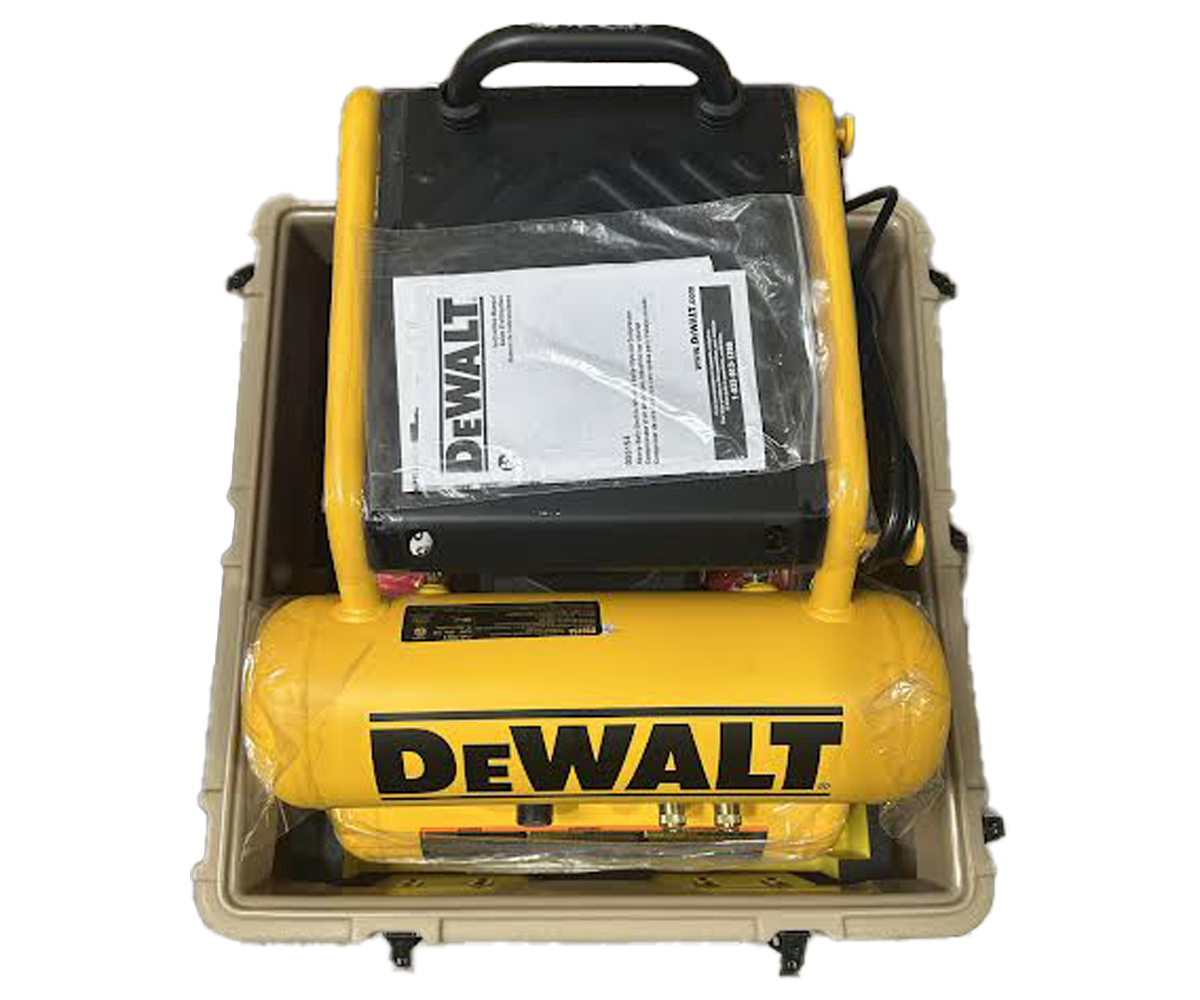

• Box 2 (compressor box) — 1 × D55152 compressor, 110 volt electric hand-carry 1.1 HP dual storage tank
• 2 × F1326B 25 ft recoil air hose
• 1 × D-180 hand hydraulic riveter
• 1 × F2000-1 Hardigg® case

Applications: AVUM and unit level maintenance, deployed and austere-site airframe repair, mobile sheet metal operations requiring self-contained air supply.
