2025 – TOOL, Pneuraulic
$1,935.00

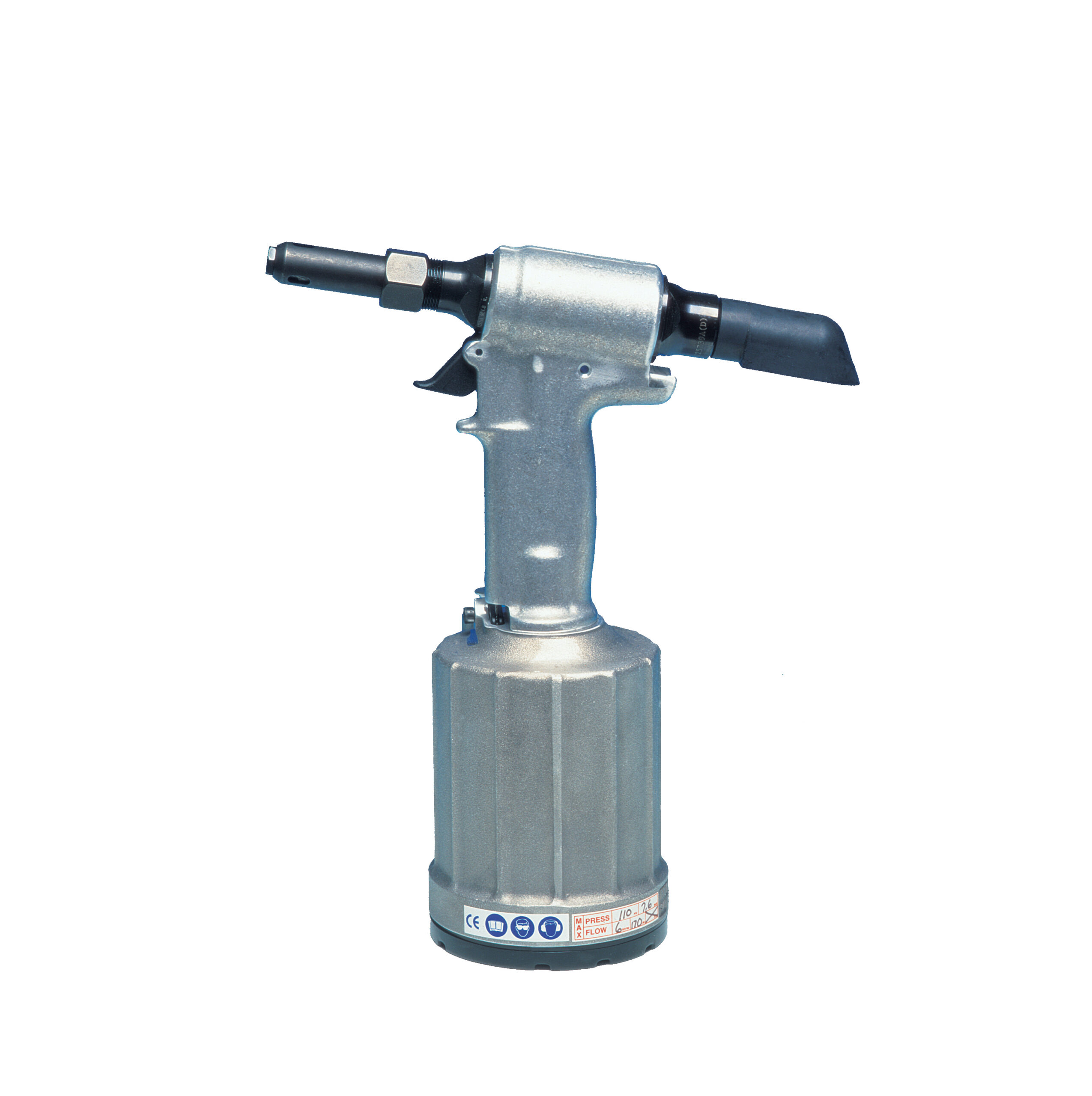

Huck® 2025 pneudraulic installation tool. 5,290 lbs @ 90 psi (23.53 kN @ 6.2 bar) pull capacity. Nose assemblies sold separately.
Description
The Huck® 2025 is a pneudraulic installation tool for aerospace blind fasteners and lockbolts. Huck pneudraulic tools use self-contained hydraulics to convert shop air into high, uniform pulling force — delivering consistent clamp-up fastener after fastener, which is exactly what structural work demands.
Comfortable grips, low-effort trigger action, and light weight reduce operator fatigue across a full shift, while chrome-plated piston rods and a low moving-part count support long service life and straightforward maintenance.
Specifications
- Type: Huck® pneudraulic installation tool
- Stroke: 0.675 in (17.15 mm)
- Pull capacity: 5,290 lbs @ 90 psi (23.53 kN @ 6.2 bar)
- Weight: 5.75 lbs (2.61 kg)
- Installation rate: 30 per minute
- Fastener capacity: 3/16 in and 1/4 in diameter
- Operating air pressure: 90 psi (6.2 bar) shop air
- Hydraulic fluid: ATF meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent
- Operating temperature: 32 to 125°F (0 to 51.7°C)
- Manufacturer: Huck® / Howmet Fastening Systems
Applications
Aerospace airframe assembly, structural repair, defense manufacturing, and industrial assembly using Huck® blind fasteners and lockbolts.
Nose assemblies are not supplied with the tool and must be ordered separately to match your fastener type and diameter. See the Brochure tab for nose assembly selection.
Product Brochure
Download the full product brochure for the 2025 – TOOL, Pneuraulic — including specifications, features, and application details.
Download Brochure (PDF)Tool Manual
Operating and service instructions for 2025. Opens in a new tab.
Download Manual (PDF)Need help with this tool? FSI is a factory-authorized repair center — see our repair services or call (707) 935-1170.
