K-3000-H Composite Material Repair Maintainers Tool Box

Description

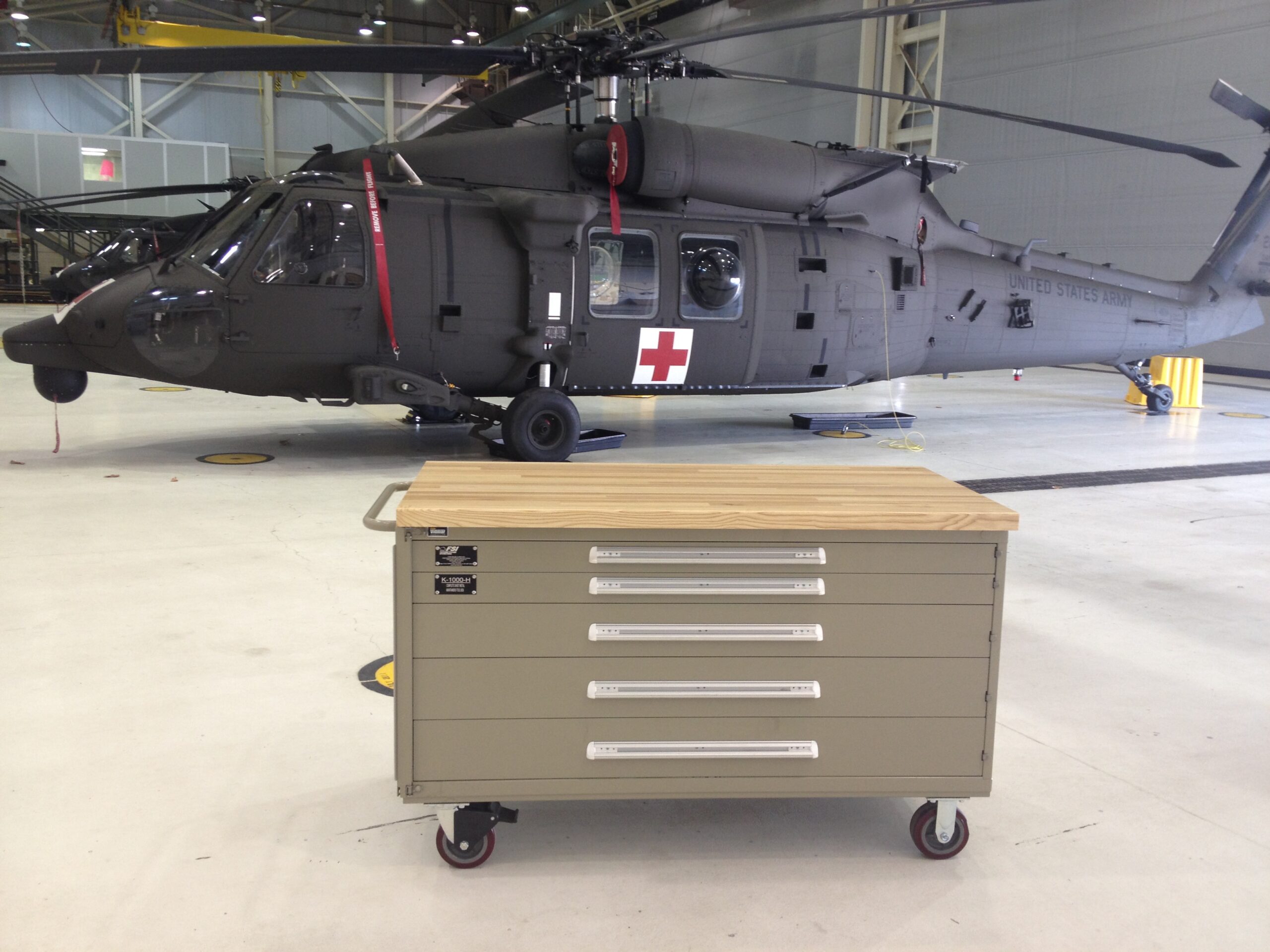

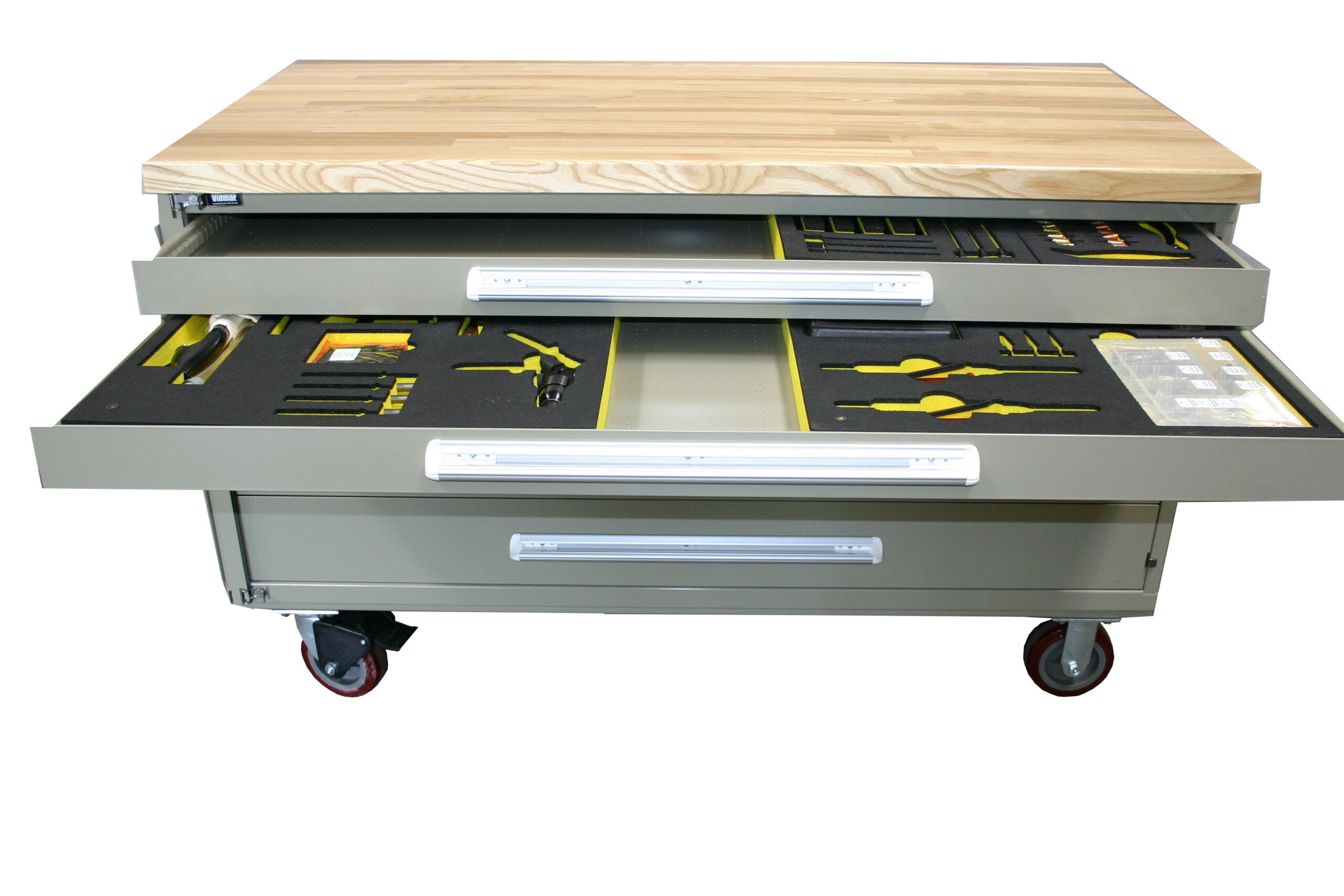

The K-3000-H is the roll-around maintainer’s box configuration of FSI’s composite material repair kit, suited to a maintenance bay where the tooling stays in place rather than travelling in transit cases. It carries the same capability set as the K-3000 — vacuum-shrouded pneumatic tools for dust capture, hot bonded repair equipment, and installation and removal tooling for Composi-Lok II®, Hi-Lok/Hi-Lite and blind bolt fasteners up to 1/4″ diameter — organised into lockable drawers.

The pneumatic complement runs vacuum shrouds and backing pads in 1″, 2″ and 3″ sizes plus drill shrouds and a router shroud, all fed by an adapter hose and six 2 ft extension hoses stored in the top drawer. The bonding station is built on the Heatcon HCS8800 portable hot bonder with eight thermocouples and USB data drive, running on 110 V or 220 V, supported by a 12 VDC portable vacuum pump, vacuum sniffers, gauge and heat blankets in three sizes.

Kit Contents

• Top drawer — 671-VHA16-005 adapter hose (5 ft, 1″ hose to 1.5″ sleeve), 6 × 671-VHA16-002 2 ft extension hose

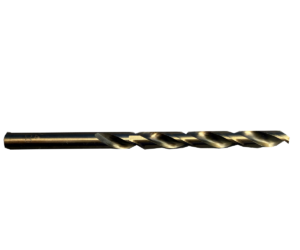

• Drawer 1 — F1865 18″ steel rule, FDC599-K drafting compass kit, F730600 circle template, FX-13S Exacto knife set, F18081 and F18517 titanium bonded material shears, F18 utility knife, FMT-3S metal triangle set, AL-TDK-12 cobalt threaded drill bit set, AL-JDBBP-C carbide brad point jobber drill set, AL-DDB-6-O carbide dagger drill set, F74 cleco pliers, cleco side grip clamps, wing-nut clecos (5/32″ and 3/16″)
• Drawer 2 — FQCK-4000 Hi-Lok/Hi-Lite installation & removal kit, FDHN568AA-RIK Composi-Lok II® installation & removal kit, 10 × FPS-1B plastic squeegee, F-4000A smart battery charger, PT-4000H-4258-CED cordless blind riveter with CherryMax® CED head, F4301-05CED / F4307-06CED / F4313-08CED blind bolt CED heads, FMSB-DP diamond cutter wheel set, F590DC diamond countersink cutter kit, F923RBK carbide tipped router bit set, F912 and F915 carbide rotary file sets
• Drawer 3 — 53135 90° threaded air drill (3200 RPM), F2501-CS air blower gun, 670-12501J 5″ and 675-12301J 3″ DA sanders, 51629 air pencil die grinder (50,000 RPM), FDR700.375-NR and FDR2600.02-NR pistol grip drills, 674-A3201 router shroud and spanner, 1″/2″/3″ vacuum shrouds and backing pads, FDG221-90 90° die grinder, FDG10S25F straight die grinder, FRT25000-1.0 air router, 2 × 674-A3005 drill shrouds
• Bottom drawer — HCS8800 portable hot bonder with 8 thermocouples and USB data drive, HCS2055-07 12 VDC portable vacuum pump with power supply adapter, HCS2026-01 vacuum pump and sniffer assemblies, HCS2015-06 vacuum sniffers, HCS2015-44 10 ft vacuum supply hose, HCS2027-03 vacuum gauge, Airvac 22 venturi vacuum pump, heat blankets (10″x10″, 15″x15″, 18″x18″), i5500 rechargeable scale, 3″ and 6″ C-clamps, F500 vacuum quick disconnects

Applications: Hangar-based composite and Kevlar repair, hot bonded structural repair, aerospace MRO composite shops, dust-controlled material removal.
