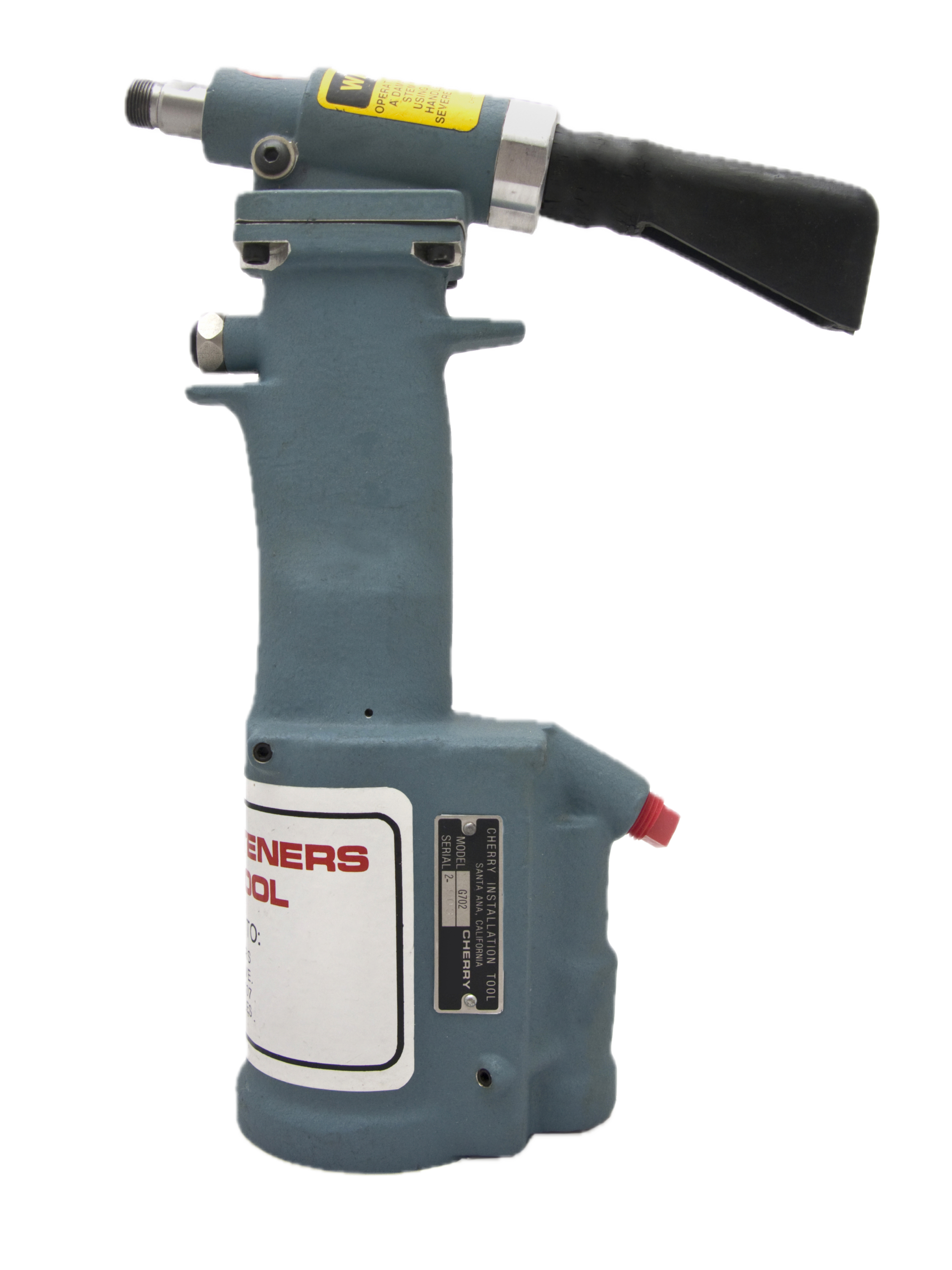

G702A – Lightweight Nut-Plate Riveter
$1,875.00
Pneumatic-hydraulic nut-plate riveter. 1,100 lbs pulling force, 3.5 lbs, approx. one-second cycle. Pulling heads sold separately.
Description
The Cherry® G702A is a lightweight pneumatic-hydraulic power tool built primarily for nut-plate rivet installation. At just 3.5 lbs with a noise level of 71 dB(A) and vibration under 2.5 m/s², it is well suited to repetitive overhead and awkward-position work where operator fatigue is a real cost.
Sold as the GH702A configuration, the tool will also install a range of commercial fastener types and sizes. Cycle time is approximately one second, supporting steady production throughput.
Specifications
- Operating air pressure: 90 psi (6.2 bar) min. / 110 psi (7.6 bar) max.
- Stroke: 0.75 in (19.05 mm)
- Pulling force: 1,100 lbs (4.9 kN) @ 90 psi
- Cycle time: Approximately one second
- Weight: 3.5 lbs (1.59 kg)
- Noise level: 71 dB(A)
- Vibration: Less than 2.5 m/s²
- Air consumption: 0.09 SCF/cycle (1.87 L/cycle)
- Pulling head: H702-3NPR for -3 and -4 diameter nut-plate rivets and SPR® (both nosepieces included)
Applications
Nut-plate installation in airframe assembly, MRO, and defense manufacturing.
Pulling heads are not supplied with the riveter and must be ordered separately. See the Brochure tab for full pulling-head selection tables.
